  11. Keyless High Torque Drill Chuck 0.512" Cap., 3MT Mount Size, Steel

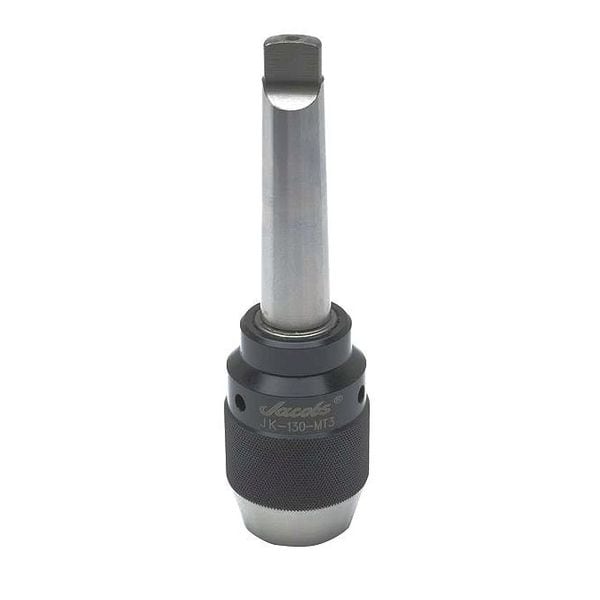

Jacobs Keyless High Torque Drill Chuck 0.512" Cap., 3MT Mount Size, Steel 31409 - main

Keyless High Torque Drill Chuck 0.512" Cap., 3MT Mount Size, Steel

  • Mfr # 31409

  • Zoro # G1474812

product price: $296.99
/ea
Free Shipping & Returns

Key Features

Chuck Type
High Torque
Material
Steel
Bearing Type
Ball
Capacity Max.
0.512 in
Capacity Min.
0.039 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
31409
Zoro #
G1474812
UPC #
095456314092
Country of Origin
Taiwan, Province of China

Dimensions

Mounting Size
MT3
Compatible Drill Diameter - Maximum
33/64 in
Compatible Drill Diameter - Minimum
1/32 in
Outside Diameter - Maximum
1.89 in
Overall Length
3 5/32 in

Details

Item
Drill Chuck
Chuck Type
High Torque
Material
Steel
Bearing Type
Ball
Capacity Max.
0.512 in
Capacity Min.
0.039 in
Mounting Type
Integral Morse Taper Shank
Nominal Capacity
1/2 in
Includes
Wrench
Keying
Keyless
Material - Machining
High Speed Steel
Application
CNC Machines
Max. Drill Capacity
0.5120 in
Features
Compact Design Eliminates Accumulated Tolerance
Min. Drill Capacity
0.0390 in
For Use With
Machine Tools
Product Type
Drill Chuck
Type
High Torque w/Intergrated Shank
Series
JK
Includes Arbor
Arbor Included
Includes Key
Key Not Included
T.I.R. Tolerance
0.0016 in
Duty Rating
Heavy

Description

Drill Chuck, CNC Machines, Morse Taper, Mounting Size MT3, Max. Drill Capacity 0.5120 in
