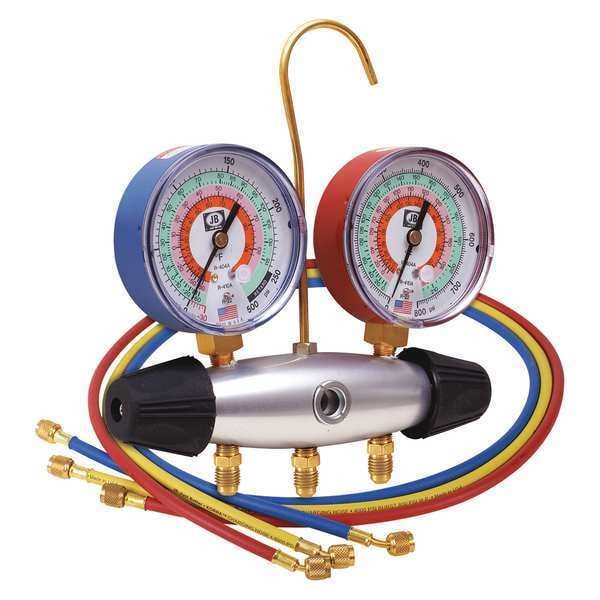

Jb Industries Manifold Gauge, 2-Valve 24233 - main

Manifold Gauge, 2-Valve

  • Mfr # 24233

  • Zoro # G2811243

product price: $203.99
/ea
Free Shipping & Returns

Key Features

Number of Valves
2
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
3
Vacuum Port Size
1/4 in
Includes
60 in High Pressure Color Coded Hose Set
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
24233
Zoro #
G2811243
UPC #
684520242333
Country of Origin
United States

Dimensions

Vacuum Port Size
1/4 in
Hose Length
5 ft
Manifold Port Connection Size
1/4 in
Overall Depth
13 in
Gauge Diameter
3 1/8 in
Overall Width
4 in
Vacuum Port Connection Size
1/4 in
Overall Height
9 1/4 in

Details

Item
Manifold Gauge Kit
Number of Valves
2
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
3
Includes
60 in High Pressure Color Coded Hose Set
Features
Free Floating O-Ring Sealing System for Faster Evacuation/Charging, Soft Grip Rubber Hand Wheels Reduce Turning to Open/Close, Hose Holder Fittings Located on the Back for Easier Connection for Storage, 3-1/8 in Glow-in-the-Dark Gauges for Easy Viewing
Gauges High Side Red
0 to 800 psi
Material
Aluminum
Gauges Low Side Blue
30 in Hg to 500 psi
Gauge Accuracy
+/-3-2-3%
Product Type
Manifold Gauge Kit
For Use With
R-22, R-404A, R-410A
Type
Aluminum
Warranty
1 yr
Includes Vacuum Port
Vacuum Port Included
Display Illumination
Glow-in-the-Dark
Pressure Resolution
1 psi
Includes Sightglass
Sightglass Included
Series
ZEPPELIN
Response Time
Instantaneous
Pressure Units Measured
in Hg, psi
Manifold Port Connection Gender
Male
Includes Gauge Boots
Boot Not Included
Calibration Certificate Type
Not Certified
Vacuum Port Connection Type
SAE
A2L Compatibility
A2L Compatible
Low Side Display Pressure - Maximum
500 psi
Low Side Display Pressure - Minimum
30 in Hg
Manifold Port Connection Thread Direction
Right-Hand
Body Material
Aluminum
High Side Display Pressure - Maximum
800 psi
Accuracy
+/- 3-2-3%
Display Type
Analog
Manifold Port Connection Type
SAE
Vacuum Port Connection Thread Direction
Right-Hand
Gauge Type
High Side/Low Side
Temperature Resolution
1 Degrees F
Temperature Units Measured
Degrees F
High Side Display Pressure - Minimum
0 psi
Vacuum Port Connection Gender
Male
For Refrigerant Type
R-22, R-404A, R-410A
Hose Connection Thread Direction
Right-Hand

Description

Manifold Gauge Kit, Number of Valves 2, R-22, R-404A, R-410A, Number of Hoses 3, 5 ft, 0 to 800 psi, 30 in Hg to 500 psi, +/-3-2-3 Percent, 1/4 in, Aluminum, Free Floating O-Ring Sealing System for Faster Evacuation/Charging, Soft Grip Rubber Hand Wheels Reduce Turning to Open/Close, Hose Holder Fittings Located on the Back for Easier Connection for Storage, 3-1/8 in Glow-in-the-Dark Gauges for Easy Viewing, Includes 60 in High Pressure Color Coded Hose Set
