  9. Platinum Refrigerant Evacuation Pump, 7.0 cfm, 1/2 HP, 6 ft cord

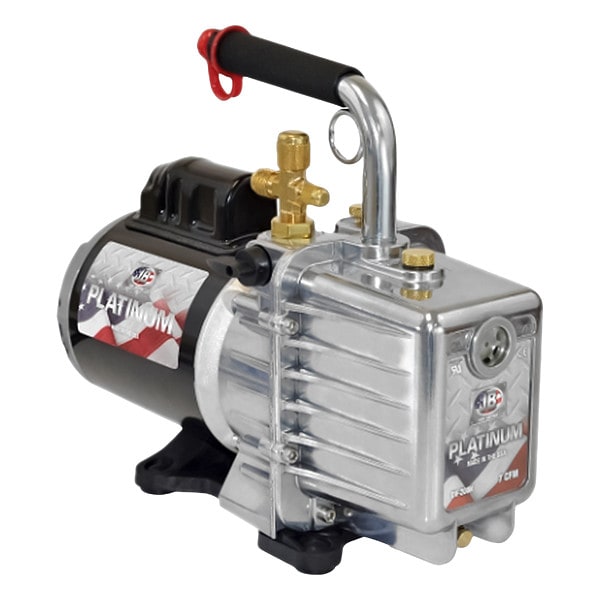

Jb Industries Platinum Refrigerant Evacuation Pump, 7.0 cfm, 1/2 HP, 6 ft cord DV-200N - main

Platinum Refrigerant Evacuation Pump, 7.0 cfm, 1/2 HP, 6 ft cord

  • Mfr # DV-200N

  • Zoro # G2752522

product price: $722.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Inlet Port Size
1/4 in and 1/2 in Flare, 3/8 in
Voltage
120V AC
Weight
32 lb
Amps AC
7.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DV-200N
Zoro #
G2752522
UPC #
684520102002
Country of Origin
United States

Dimensions

Inlet Port Size
1/4 in and 1/2 in Flare, 3/8 in
Overall Length
14 in
Overall Height
9.1 in
Overall Width
18 in
Width
5 5/8 in
Height
12 in
Inlet 1 Port Connection Size
1/2 in
Inlet 3 Port Connection Size
3/8 in
Inlet 2 Port Connection Size
1/4 in
Cord Length
6 ft

Details

Item
Vacuum Pump
HP
1/2 hp
Voltage
120V AC
Weight
32 lb
Amps AC
7.5 A
Displacement
7 cfm
End Vacuum
15 micron
Includes
Blank Off Check Valve
Oil Capacity
21 oz
Cord
6 ft
Body Material
Aluminum
Hz
60 Hz
Motor Type
Dual Voltage
Application
For Air Conditioning and Refrigeration System Evacuation
Features
Oil Sight Glass
Standards
CE Certified, CSA Certified, EMC, UL Listed
Includes Vacuum Gauge
Gauge Not Included
Includes Hoist Clip
Hoist Clip Included
Inlet 2 Port Connection Thread Direction
Right-Hand
Number of Stages
Two-Stage
Drain Port Connection Thread Direction
Right-Hand
Inlet 3 Port Connection Type
Flare
Inlet 1 Port Connection Type
Flare
Includes Gas Ballast
Gas Ballast Included
Product Type
Vacuum Pump
Inlet 1 Port Connection Thread Direction
Right-Hand
Inlet 3 Port Connection Thread Direction
Right-Hand
Motor Speed
1,725 RPM
Drive Type
Direct Drive
Number of Inlet Ports
3
Reservoir Port Connection Thread Direction
Right-Hand
Power Source
Plug-In
Inlet 3 Port Connection Gender
Male
Warranty
2 yr
Series
PLATINUM
Frequency
60 Hz
Includes Isolation Valve
Isolation Valve Included
Horsepower
1/2 hp
Mobility
Handle
Ultimate Vacuum
15 micron
Includes Sightglass
Sightglass Included
Inlet 1 Port Connection Gender
Male
Inlet 2 Port Connection Type
Flare
Current
7.5 A
Plug Configuration
5-15P
Includes Oil Mist Filter
Oil Mist Filter Not Included
Calibration Certificate Type
Not Certified

Description

Vacuum Pump, 7 cfm Displacement, 1/2 hp HP, Inlet Port Size 1/4 in and 1/2 in Flare, 3/8 in, Voltage 120V AC, Amps AC 7.5 A, 60 Hz Hz, 15 micron End Vacuum, Overall Length 14 in, Overall Height 9.1 in, Overall Width 18 in, Weight 32 lb, Oil Capacity 21 oz, Cord 6 ft, Body Material Aluminum, Includes Blank Off Check Valve
