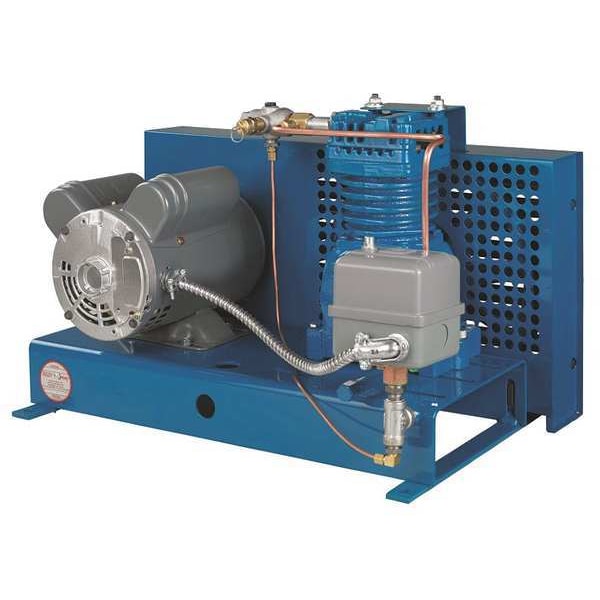

Fire Sprinkler Air Compressor, 1 HP

  • Mfr # K1S-BS-115/1-ACGK

  • Zoro # G6154942


product price: $1,850.99
/ea
Item requires special delivery charges. A $90.00 per item surcharge will be applied.

Key Features

Tank Size
30 gal.
Voltage
115/230VAC
Max. Pressure
40 psi
Phase
Single
HP
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K1S-BS-115/1-ACGK
Zoro #
G6154942
UPC #
-
Country of Origin
United States

Dimensions

Tank Size
30 gal.
Overall Length
25.75 in
Overall Height
18.25 in
Overall Width
16.25 in
Outlet Size
1/2 in
Inlet Size
1/2 in

Details

Voltage
115/230VAC
Max. Pressure
40 psi
Phase
Single
HP
1
Tank Type
Vertical
Free Air CFM @ Max. Pressure
7.4
Includes
Initial Fill of Compressor Oil, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Compressor Type
Base Mounted
Standards
ASME Approved, CSA, UL Listed, UL1450
Max. Pressure - Air Compressor
40 psi
HP - Air Compressor
1.0 hp
Pump RPM
790
Number of Stages - Air Compressor
1
Enclosure
NEMA 1
Item - Air Compressor
Fire Sprinkler Air Compressor
Number of Stages
1
Pump Oil Capacity
32 fl oz
Style - Air Compressor
Simplex
Hz
60
On Pressure Switch Setting
30 psi
Lubrication Type
Splash Lubricated
Finish
Powder Coated
Control
Pressure Switch
Motor Type
Open Dripproof
Pump Location - Air Compressor
Base Mounted
(F)NPT Outlet
1/2 in
Amps
12.5/6.3
Compressor Package Type
Base Model
Input Voltage - Air Compressor
120V AC, 240V AC
Off Pressure Switch Setting
40 psi
dBA @ 3 Feet
78
Free Air CFM @ Max. Pressure - Air Compressor
7.4
Lubrication Type - Air compressor
Splash Lubricated
Item
Fire Sprinkler Air Compressor
Tank Style - Air Compressor
Tankless
ASME Tank
No
Cylinder Material
Cast Iron
Phase - Electrical
1
Enclosure Rating
NEMA 1
Outlet Gender
Female
Maximum Speed
790 RPM
Maximum Operating Pressure
40 psi
Frequency
60 Hz
Duty Cycle
Intermittent
Current Rating
12.5 A, 6.3 A
Pump Style
Simplex
Outlet Type
NPT
Control Type
Pressure Switch
Pump Type
Piston
Sound Level
78 dBA
Input Voltage
120V AC, 240V AC
Free Air Flow Rate @ Maximum Pressure
7.4 cfm
Air Tank Style
Tankless
Pump Location
Base Mount
Enclosure Type
Totally Enclosed
Output Power
1 hp

Description

Fire Sprinkler Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Tankless, Number of Stages 1, Output Power 1 hp, Free Air Flow Rate @ Maximum Pressure 7.4 cfm, Maximum Operating Pressure 40 psi, Input Voltage 120V AC, 240V AC, Phase Single, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Piston, Pump Location Base Mount
