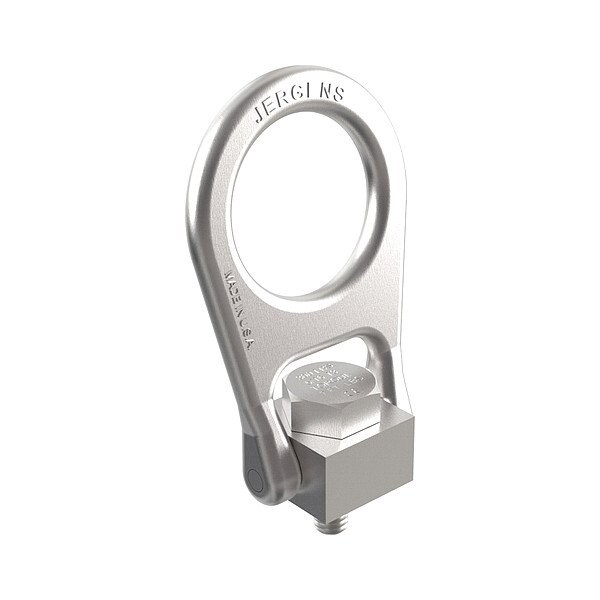

Hoist Ring, Stainless Steel
Mfr # 23956-SS
Zoro # G922413978
product price:Â
$
502.99
/ea
Free Shipping & Returns
Key Features
Thread Size
M8-1.25
Color
Black
Movement Type
Pivot, Swivel
Pivot Angle
180 Degrees
Bail Inside Width
38.1 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 23956-SS
- Zoro #
- G922413978
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8-1.25
- Bail Inside Width
- 38.1 mm
- Overall Width
- 57 1/4 mm
- Bail Thickness
- 6.3 mm
- Usable Thread Length
- 12 mm
- Wire Rope Length
- 91 1/4 mm
- Overall Length
- 91 1/4 mm
- Length
- 91 1/4 mm
Details
- Color
- Black
- Movement Type
- Pivot, Swivel
- Pivot Angle
- 180 Degrees
- Working Load Limit
- 880 lb
- Material
- Alloy Steel
- Series
- Forged Center Pull
- Maximum Operating Temperature
- 600 Degrees F
- Minimum Installation Torque
- 10 N-m
- Operation
- Lifting, Pulling
- Item
- Hoist Ring
- Standards
- AS 9001:2016 Certified, AS 9100 Rev D Certified, ASTM E1444, AWRF, CE Certified
- Swivel Angle
- 360 Degrees
- Finish
- Black Oxide
Description
Hoist Rings
