  11. Belt and Disc Sander, 1 1/2 hp, 12 in Disc Dia, 1960 RPM Disc Speed, Corded, 230 V V

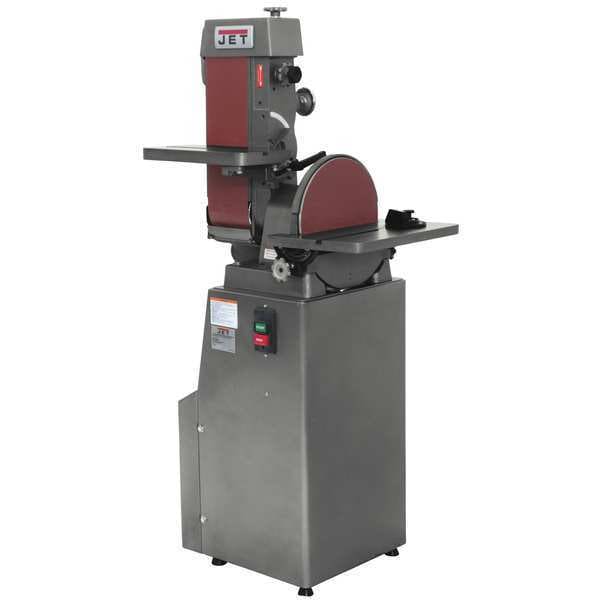

Jet Belt and Disc Sander, 1 1/2 hp, 12 in Disc Dia, 1960 RPM Disc Speed, Corded, 230 V V 414552 - main

Belt and Disc Sander, 1 1/2 hp, 12 in Disc Dia, 1960 RPM Disc Speed, Corded, 230 V V

  • Mfr # 414552

  • Zoro # G9878696

product price: $2,790.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

HP
1 1/2 hp
Disc Dia. (In.)
12 in
Disc Speed (RPM)
1960
Belt Size (In.)
6 x 48
Belt SFPM
2,850 SFPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
414552
Zoro #
G9878696
UPC #
662755111358
Country of Origin
Taiwan, Province of China

Dimensions

Disc Dia. (In.)
12 in
Belt Size (In.)
6 x 48
Platen Size (In.)
6-1/4 x 14-3/4
Disc Table Size (In.)
12 x 16-3/8
Overall Width (In.)
19 in
Overall Depth (In.)
26 in
Dust Collection Port Size (In.)
1 1/2 in
Overall Height (In.)
58 in
Tool Length
26 in
Platen Length
14 3/4 in
Disc Table Length
14 3/4 in
Tool Width
19 in
Tool Height
58 in
Disc Table Width
7 3/8 in
Table Working Length
14 3/4 in
Table Working Width
7 3/8 in
Dust Collection Port Size
1 1/2 in
Belt Table Length
14 3/8 in
Maximum Disc Diameter
12 in
Belt Width
6 in
Platen Width
6 1/4 in
Belt Table Width
7 3/8 in
Belt Length
48 in
Grinding Wheel Diameter
12 in

Details

Item
Belt and Disc Sander
HP
1 1/2 hp
Disc Speed (RPM)
1960
Belt SFPM
2,850 SFPM
Corded/Cordless
Corded
Voltage
230 V
Phase
Single-Phase
Corded/Banded
Corded
Operation
Grinding or Finishing Material Both Flat and Angles
Hz
60
Amps AC
10
Table Work Surface (In.)
7-3/8 x 14-3/4
Table Material
Cast Iron
Features
Adjustable Dust Collector and Dust Chute, Completely Enclosed Drums and Guarded Sanding Belt, Large Cast Iron Slotted Table, Removable Upper Belt Guard for Contour Finishing, Variable Position Locks
Disc Table Tilt-Out Angle (Deg.)
45 Out
Agency Compliance
CSA
Belt Table Tilt Angle (Deg.)
45 Out / 20 In
Disc Table Tilt-In Angle (Deg.)
20 Degrees
Includes
Enclosed Drums, Dust Chutes, Still Stand, Large Cast Iron Slotted Table, Removable Upper Guard, Variable Position Locks
Tool Weight
250 lb
Product Type
Belt and Disc Grinder
Power Source
Corded
Number of Speeds
1
Mounting Location
Floor Standing
Maximum Disc Table Tilt-Out Angle
45 Degrees
Horsepower
1 1/2 hp
Speed Settings
Fixed
Belt Orientation
Horizontal, Vertical
Maximum Disc Table Tilt-In Angle
20 Degrees
Standards
CSA
Grinding Wheel Speed
1,960 RPM
Current
10 A
Compatible Workpiece Material
Metal
Belt Speed
2,850 SFPM

Description

Belt and Disc Sander, Product Type Belt and Disc Grinder, Compatible Workpiece Material Metal, Voltage 230 V, Phase Single-Phase, Horsepower 1 1/2 hp, Mounting Location Floor Standing, Belt Speed 2,850 SFPM, Grinding Wheel Diameter 12 in, Grinding Wheel Speed 1,960 RPM, Speed Settings Fixed, Maximum Disc Table Tilt-Out Angle 45 Degrees , Maximum Disc Table Tilt-In Angle 20 Degrees , Number of Speeds 1, Belt Length 48 in, Belt Orientation Horizontal, Vertical, Belt Table Length 14 3/8 in
