Shop All Drill Presses
Jet

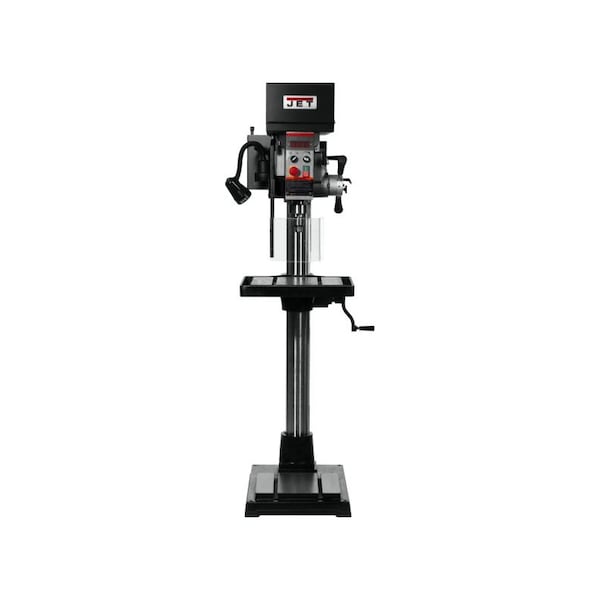

Drill Press, Metal, Flouor Stand, 230V

Key Features
  • Item: Drill Press
  • Drive Type: Belt
  • Swing: 19 3/4 in
  • Voltage: 230V
  • Chuck Size: 1/2 in
  • Number of Speeds: 3
  • Spindle Travel: 5 in
  • Spindle Taper: MT3
See full product details
$5,248.95
Item requires special delivery charges. A $260.00 per item surcharge will be applied.
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Jet #354251 Specifications

  • Item: Drill Press
  • Drive Type: Belt
  • Swing: 19 3/4 in
  • Voltage: 230V
  • Chuck Size: 1/2 in
  • Number of Speeds: 3
  • Spindle Travel: 5 in
  • Spindle Taper: MT3
  • Cord Length: 6 ft
  • Maximum Overall Height: 70 3/8 in
  • Maximum Spindle Speed: 2,000 RPM
  • Phase: Three-Phase
  • Column Diameter: 4 in
  • Maximum Spindle-to-Base Height: 48 1/4 in
  • Table Width: 18 1/2 in
  • Base Length: 17 3/4 in
  • Number of T-Slots: 2
  • Table Shape: Rectangular
  • Reversible: Yes
  • Power Down Feed Included: Yes
  • Base Width: 25 1/2 in
  • Tool Weight: 493 lb
  • Tapping Capacity in Steel: 5/8 in
  • Tapping Compatible: Yes
  • Downfeed Type: Power
  • Table Length: 16 1/2 in
  • Primary Material Application: Metal
  • Chuck Style: Keyed
  • Current: 4.6A
  • Speed Control: Variable
  • Speed Adjustment: Clutch
  • Drilling Capacity in Cast Iron: 1 1/4 in
  • Drilling Capacity in Steel: 1 1/8 in
  • Standards: CSA/CUS Certified
  • Number of Spindle Speeds: Variable
  • Plug Type: Three-Prong
  • Maximum Spindle-to-Table Height: 46 27/32 in
  • Application: Heavy Drilling
  • Table Load Capacity: 110 lb
  • Overall Length: 32 5/8 in
  • Speed Range: 50 to 2000 RPM
  • Guard Included: Yes
  • Spindle-to-Column Distance: 26 1/2 in
  • Horsepower: 1.5 hp
  • Drill Press Application: Drilling, Tapping
  • Table Slot: Yes
  • Minimum Spindle Speed: 50 RPM
  • Power Source: Corded
  • Quill Diameter: 2 5/32 in
  • Drill Press Type: Floor Stand
  • Table Slot Width: 5/8 in
  • Spindle Speed Range: 50 RPM - 2,000 RPM
  • Motor Voltage: Three-Phase
  • Drill Spindle Travel: 5 in - 6 in
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Drilling, Tapping, Speed Control Variable, Speed Adjustment Clutch, Swing 19 3/4 in, Spindle-to-Column Distance 26 1/2 in, Horsepower 1.5 hp, Voltage 230V AC, Spindle Taper MT3, Number of Speeds 3, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Quill Diameter 2 5/32 in, Tapping Capacity in Steel 5/8 in, Drilling Capacity in Steel 1 1/8 in
