Shop JET

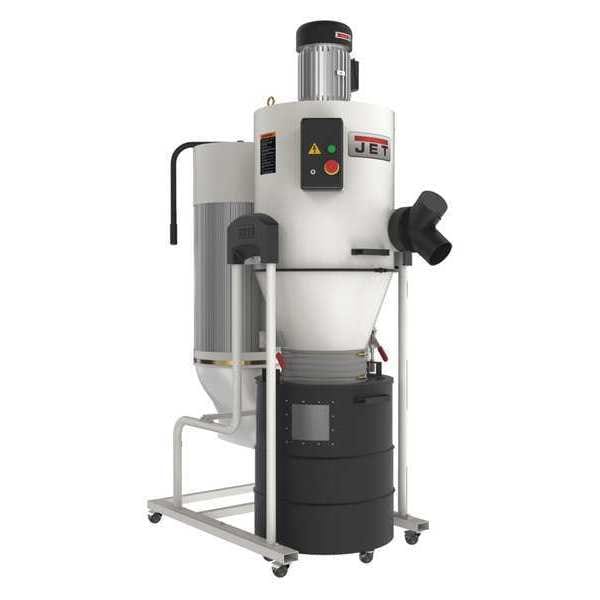

Dust Collector, 2HP, 30 gal., 230V

  • Mfr # 717520
  • Zoro # G4054088
product price:
$
2,492.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Max. Flow (CFM)
1,538 cfm
Operating Velocity Range (FPM)
7,813 fpm
Static Pressure Range (In.)
3.8
HP
2 hp
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
717520
Zoro #
G4054088
UPC #
731325424225
Country of Origin
Taiwan, Province of China

Dimensions

Impeller Dia. (In.)
14-1/2
Hose Dia. (In.)
6 in
Drum Dia. (In.)
19-11/16
Overall Depth (In.)
25 in
Overall Height (In.)
72 1/4 in
Depth (In.)
22 1/4 in
Height (In.)
22 1/4 in
Overall Width (In.)
50 5/8 in
Width (In.)
50 5/8 in
Overall Height
72 1/4 in
Overall Width
50 5/8 in
Adaptor Inlet Diameter
4 in
Main Inlet Diameter
6 in
Overall Length
22 1/4 in
Wire Rope Length
22 1/4 in
Length
22 1/4 in

Details

Item
Wood Dust Collector
Max. Flow (CFM)
1,538 cfm
Operating Velocity Range (FPM)
7,813 fpm
Static Pressure Range (In.)
3.8
HP
2 hp
Phase
Single
Amps AC
9 A
dBA
76 dBA
Cord Type
3 Prong Plug
Min. Air Flow (CFM)
938
Hz
60 Hz
Drum Capacity (Gal.)
30 gal
Chip Capacity (Microns)
1 micron
Voltage
230V AC
Type
Cyclone
Filter Bag
1 micron
Sound Rating - Maximum
76 dBA
Dust Collector Type
Cyclone
Lower Collector Type
Drum
Air Flow - Maximum
1,538 cfm
Frequency
60 Hz
Filter Efficiency
1 micron
Number of Adaptor Inlets
2
Amperage
9.0 A
Lower Collector Capacity
30 gal
Nameplate Voltage
230V AC

Description

Wood Dust Collector, Mounting Type Mobile, Dust Collector Type Cyclone, Filter Type Cartridge, Nameplate Voltage 230V AC, Air Flow - Maximum 1,538 cfm, Filter Efficiency 1 micron, Main Inlet Diameter 6 in, Number of Adaptor Inlets 2, Adaptor Inlet Diameter 4 in, Lower Collector Type Drum, Lower Collector Capacity 30 gal, Sound Rating - Maximum 76 dBA, Amperage 9.0 A, Frequency 60 Hz, HP 2 hp, Overall Height 72 1/4 in, Overall Length 22 1/4 in, Overall Width 50 5/8 in, Phase Single
