  11. Floor Drill Press, Geared Head Drive, 2 hp, 230V AC V, 20 in Swing, 12 Speed

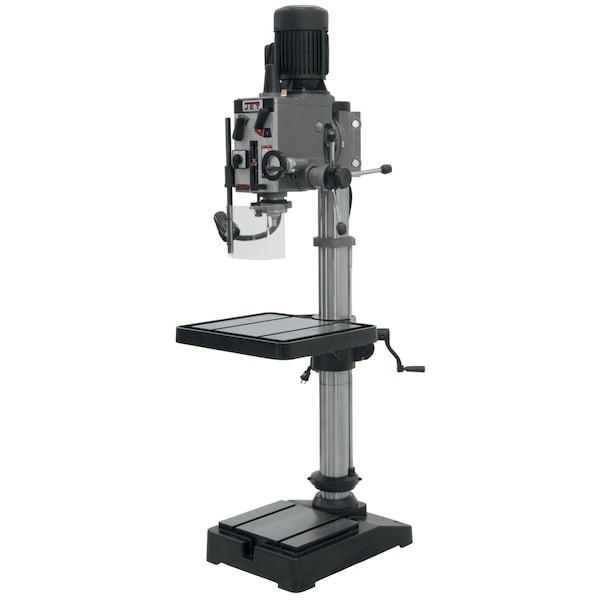

Jet Floor Drill Press, Geared Head Drive, 2 hp, 230V AC V, 20 in Swing, 12 Speed 354020 - main

Floor Drill Press, Geared Head Drive, 2 hp, 230V AC V, 20 in Swing, 12 Speed

  • Mfr # 354020

  • Zoro # G9947357

product price: $6,674.99
/ea
Item requires special delivery charges. A $335.00 per item surcharge will be applied.

Key Features

Drill Press Product Grouping
Production Drill Presses
Drive Type
Geared Head
Swing
20 in
Voltage
230V AC
Motor HP
2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
354020
Zoro #
G9947357
UPC #
662755803840
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1/2 in
Overall Depth
24 in
Table Slot Size
5/8 in
Column Dia.
4 1/2 in
Base Size
26 in x 18 in
Overall Width
32 in
Overall Height
71 in
Quill Dia.
3 in
Overall Length
32 in
Maximum Overall Height
71 in
Table Length
21 3/4 in
Quill Diameter
3 in
Base Width
18 in
Base Length
26 in
Maximum Spindle-to-Table Height
30 1/2 in
Table Width
19 1/2 in
Column Diameter
4 1/2 in
Table Slot Width
5/8 in
Maximum Spindle-to-Base Height
44 15/16 in

Details

Drill Press Product Grouping
Production Drill Presses
Item
Floor Drill Press
Drive Type
Geared Head
Swing
20 in
Voltage
230V AC
Motor HP
2 hp
Number of Speeds
12
Capacity Steel
1 1/4 in
Spindle Speed
60 to 3000 rpm
Power Down Feed Included
No
Hz
60
Number of T-Slots
2
Corded/Cordless
Corded
Spindle to Table
30 1/2 in
Table Work Surface
21-1/4 in x 18-1/2 in
Spindle Taper
3MT
Capacity Cast Iron
1 1/2 in
Drilling Capacity Wood
Not Specified
Includes
Chuck Arbor, Draw Bar
Spindle Travel
5 in
Max. Spindle To Base
44 15/16 in
Corded/Banded
Corded
Phase
Three-Phase
Application
Drilling
Tool Weight
660 lb
Drilling Capacity in Cast Iron
1 1/2 in
Primary Material Application
Metal
Drill Press Type
Floor Stand
Spindle-to-Column Distance
10 in
Speed Control
Fixed
Coolant System
No
Number of Spindle Speeds
12
Minimum Spindle Speed
60 RPM
Radial Arm
No
Horsepower
2 hp
Current
3.2/3.2 A
Power Source
Corded
Guard Included
Yes
Drilling Capacity in Steel
1 1/4 in
Speed Range
60 to 3,000 RPM
Drilling Capacity in Wood
1 1/2 in
Maximum Spindle Speed
3,000 RPM
Speed Adjustment
Gear Head
Drilling Capacity in Stainless Steel
1 in
Chuck Style
Keyed
Table Shape
Rectangular
Drill Press Application
Drilling
Table Slot
Yes
Table Load Capacity
275 lb

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Gear Head, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 2 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds 12, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 3 in, Drilling Capacity in Steel 1 1/4 in, Drilling Capacity in Stainless Steel 1 in
