  11. Floor Drill Press, Spline, 15", 1HP, 120/240

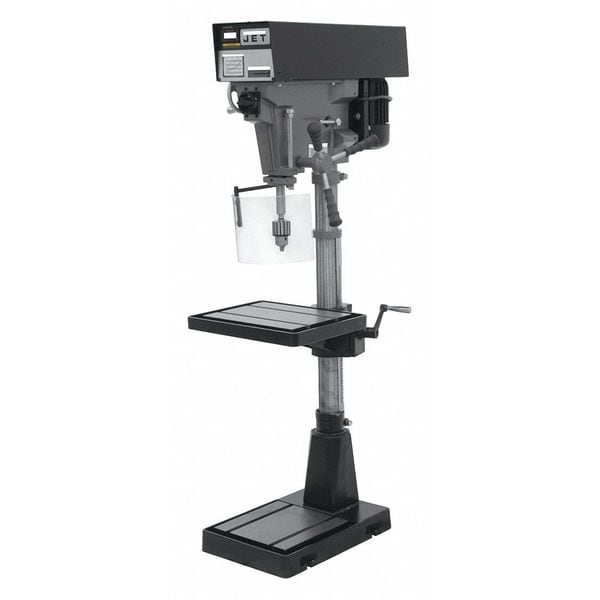

Jet Floor Drill Press, Spline, 15", 1HP, 120/240 354550 - main

Floor Drill Press, Spline, 15", 1HP, 120/240

  • Mfr # 354550

  • Zoro # G9881864

product price: $3,009.99
/ea
Item requires special delivery charges. A $220.00 per item surcharge will be applied.

Key Features

Drill Press Product Grouping
Production Drill Presses
Drive Type
Spline
Swing
15 in
Voltage
115/230V AC
Motor HP
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
354550
Zoro #
G9881864
UPC #
19907633044
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1/2 in
Column Dia.
3 in
Quill Dia.
2 1/4 in
Overall Depth
30 in
Overall Width
20 in
Base Size
10-1/2 in x 15 in
Table Slot Size
1/2 in
Overall Height
71 in
Table Length
15 in
Quill Diameter
2 1/4 in
Column Diameter
3 in
Maximum Overall Height
71 in
Base Width
14 1/4 in
Base Height
3 1/8 in
Maximum Spindle-to-Base Height
44 1/2 in
Maximum Spindle-to-Table Height
25 3/4 in
Table Slot Width
1/2 in
Overall Length
30 in
Table Width
18 in
Base Length
20 1/2 in

Details

Drill Press Product Grouping
Production Drill Presses
Item
Floor Drill Press
Drive Type
Spline
Swing
15 in
Voltage
115/230V AC
Motor HP
1 hp
Number of Speeds
Variable
Capacity Steel
1/2 in
Spindle Speed
400 to 5000 rpm
Corded/Cordless
Corded
Spindle to Table
25 3/4 in
Amps AC
16.0/8.0
Includes
Drill Chuck and Arbor
Corded/Banded
Corded
Drilling Capacity Wood
Not Specified
Spindle Taper
2MT
Hz
60
Spindle Travel
6 in
Max. Spindle To Base
47 1/2 in
Capacity Cast Iron
5/8 in
Number of T-Slots
2
Phase
Single-Phase
Power Down Feed Included
No
Table Work Surface
12-1/2 in x 14-1/2 in
Application
Drilling
Tool Weight
426 lb
Power Source
Corded
Drilling Capacity in Wood
5/8 in
Drilling Capacity in Steel
1/2 in
Chuck Style
Keyed
Radial Arm
No
Speed Control
Variable
Coolant System
No
Speed Range
400 to 5,000 RPM
Drill Press Type
Floor Stand
Primary Material Application
Metal
Number of Spindle Speeds
Variable
Drilling Capacity in Stainless Steel
25/64 in
Table Shape
Rectangular
Drill Press Application
Drilling
Speed Adjustment
Mechanical Variable Speed Drive System
Guard Included
Yes
Spindle-to-Column Distance
7 1/2 in
Horsepower
1 hp
Table Slot
Yes
Current
16/8 A
Chuck Capacity
1/2 in
Minimum Spindle Speed
400 RPM
Table Load Capacity
90 lb
Drilling Capacity in Cast Iron
5/8 in
Maximum Spindle Speed
5,000 RPM

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Mechanical Variable Speed Drive System, Swing 15 in, Spindle-to-Column Distance 7 1/2 in, Horsepower 1 hp, Voltage 115/230V AC, Spindle Taper 2MT, Number of Speeds Variable, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 1/4 in, Drilling Capacity in Steel 1/2 in
