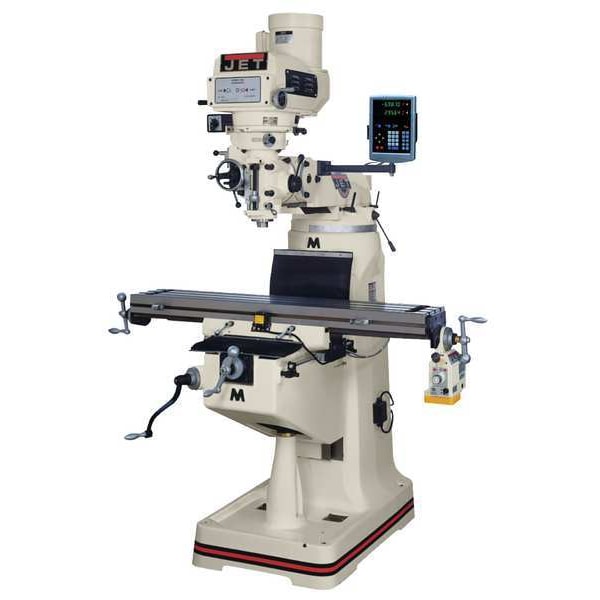

Jet Knee/Column Milling Machine, 3ph, 230/460V 690087 - main

Knee/Column Milling Machine, 3ph, 230/460V

  • Mfr # 690087

  • Zoro # G9879125

product price: $21,221.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Voltage
230/460V
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690087
Zoro #
G9879125
UPC #
662755504327
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
63 in
Overall Depth
66 in
Overall Height
85 in
Quill Dia.
3 3/8 in
Overall Length
63 in
Table Width
49 in
Spindle Travel Length
5 in
Ram Travel Length
13-3/8 in
Table Length
9 in
Spindle Taper Size
R-8
T-Slot Width
5/8 in
Table Work Surface - Width
49 in
T-Slot Depth
3/4 in
Quill Diameter
3 3/8 in
Table Work Surface - Depth
9 in

Details

Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
Features
Mechanize Casting, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearings, Spindle Head is Internally Cooled, Satin Chrome Finished Dials, Heavy duty Splined Motor Drive, one piece Quill Pinion and Shaft, Three stage Power Down Feed with Automatic Stop, Three stage Power Down Feed with Automatic Stop, Heavy duty Spindle Brake, Precision Hardened and Ground Ways, Precision Ground Table, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
Spindle Taper
R8
Hz
60
Motor Type
Totally Enclosed Fan-Cooled
Number of T-Slots
3
Horsepower
3 hp
Left-Hand Head Tilt
90 Degrees
Number of Spindle Speeds
Variable
Max. Spindle to Table Distance
17 1/2 in
Max. Spindle To Column Distance
19 in
Table Load Capacity
660 lb
Backward Head Tilt Adjustment
45 Degrees
Right-Hand Head Tilt
90 Degrees
Min. Spindle Speed
60 RPM
Min. Spindle to Column Distance
4-1/2 in
Forward Head Tilt
45 Degrees
Max. Spindle Speed
4,200 RPM
Digital Readout Included
Newall DP700
Spindle To Column Distance - Maximum
19 in
Maximum Cross Travel
12 in
Head Tilt - Forward
45 Degrees
Spindle Speed - Maximum
4,200 RPM
Head Swivel - Left
90 Degrees
Maximum Spindle Travel
5 in
Includes Digital Readout
Digital Readout Included
Drawbar Style
Manual
Maximum Longitudinal Travel
34 in
Maximum Knee Travel
14 1/2 in
Series
JTM-4VS
Spindle to Column Distance - Minimum
4 1/2 in
Collet Capacity -Minimum
1/8 in
Head Tilt - Backward
45 Degrees
Spindle Speed - Minimum
60 RPM
Frequency
60 Hz
Manufacturer Warranty
2 yr
Maximum Ram Travel
13 3/8 in
Collet Capacity -Maximum
7/8 in
Head Swivel - Right
90 Degrees
Included Powerfeeds
X-Axis Powerfeed
Spindle to Table Distance
17 1/2 in

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 660 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
