  11. Step Pulley Mill Machine, 2HP, 115/230V

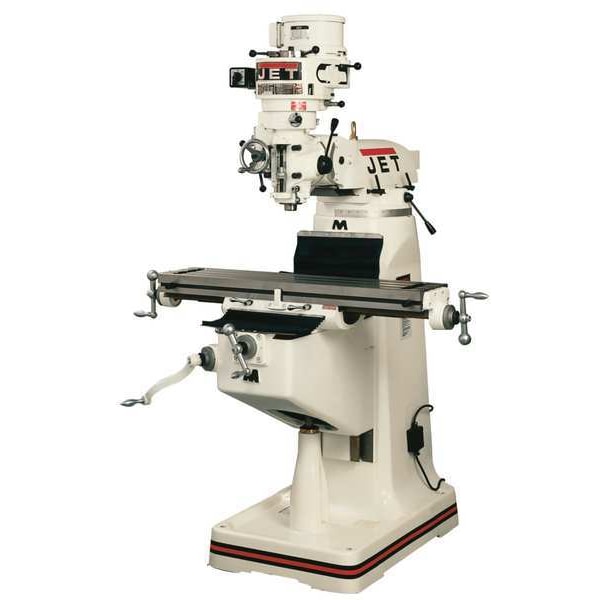

Jet Step Pulley Mill Machine, 2HP, 115/230V 690089 - main

Step Pulley Mill Machine, 2HP, 115/230V

  • Mfr # 690089

  • Zoro # G9879134

product price: $14,808.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Step Pulley R8
Table Size (In.)
9 x 42
Voltage
115/230V
Motor HP
2
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690089
Zoro #
G9879134
UPC #
662755105890
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 42
Overall Width
64 in
Overall Depth
57 in
Overall Height
82 in
T-Slot Size (In.)
0 3/8
Quill Dia. (In.)
3-3/8
Quill Dia.
3 3/8 in
Ram Travel Length
13-3/8 in
Table Width
42 in
Table Length
9 in
Overall Length
64 in
Spindle Taper Size
R-8
Spindle Travel Length
5 in
Quill Diameter
3 3/8 in
Table Work Surface - Depth
9 in
Table Work Surface - Width
42 in

Details

Type
Step Pulley R8
Voltage
115/230V
Item
Vertical Milling Machine
Motor HP
2
Phase
Single
Longitudinal Travel
23-7/8 in
Cross Travel
12-1/2 in
Longitudinal Travel (In.)
23.87
Cross Travel (In.)
12-1/2
Knee Travel (In.)
14-1/2
Spindle to Table (In.)
17-1/2
Head Angle Front/Back (Deg.)
45
Head Angle (Deg.)
90
Spindle Speed (RPM)
80 to 2720
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle bearings, Spindle head is internally cooled, 2 year warranty
Number of T-Slots
3
Spindle Taper
R8
Hz
60
Quill Travel (In.)
5
Max. Table Weight (lbs.)
550
Includes
(2) Belt Guards, (3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Hoisting Ring, Plastic Oil Bottle, Pleated Way Cover
Ram Travel (In.)
13-3/8
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Motor Type
Totally Enclosed Fan-Cooled
Right-Hand Head Tilt
90 Degrees
Max. Spindle to Table Distance
17 1/2 in
Max. Spindle Speed
2,720 RPM
Forward Head Tilt
45 Degrees
Left-Hand Head Tilt
90 Degrees
Min. Spindle Speed
80 RPM
Horsepower
2 hp
Min. Spindle to Column Distance
4-1/2 in
Min. Spindle to Table Distance
17-1/2 in
Number of Spindle Speeds
8
Max. Spindle To Column Distance
19 in
Table Load Capacity
550 lb
Backward Head Tilt Adjustment
45 Degrees
Maximum Cross Travel
12 1/2 in
Collet Capacity -Minimum
1/8 in
Head Tilt - Backward
45 Degrees
Manufacturer Warranty
2 yr
Ram Swivel - Right
90 Degrees
Sound Level
75 dB
Maximum Ram Travel
13 3/8 in
Spindle to Column Distance - Minimum
4 1/2 in
Maximum Knee Travel
14 1/2 in
Head Tilt - Forward
45 Degrees
Ram Swivel - Left
90 Degrees
Spindle Speed - Minimum
80 RPM
Spindle Speed - Maximum
2,720 RPM
Current
14 A, 28 A
Maximum Spindle Travel
5 in
Head Swivel - Left
90 Degrees
Series
JTM-2
Drawbar Style
Manual
Head Swivel - Right
90 Degrees
Collet Capacity -Maximum
7/8 in
Spindle to Table Distance
17 1/2 in
Motor Speed - Maximum
1,720 RPM
Maximum Longitudinal Travel
23 7/8 in
Spindle To Column Distance - Maximum
19 in
Milling Head Drive
Belt Drive
Frequency
60 Hz

Description

Vertical Milling Machine, Table Length 9 in, Table Width 42 in, 2 hp, Table Load Capacity 550 lb, Phase Single, Voltage 115/230V, Longitudinal Travel 23-7/8 in, Cross Travel 12-1/2 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 2,720 RPM
