  11. Var Speed Mill Machine, 1Ph, 2HP, 115/230V

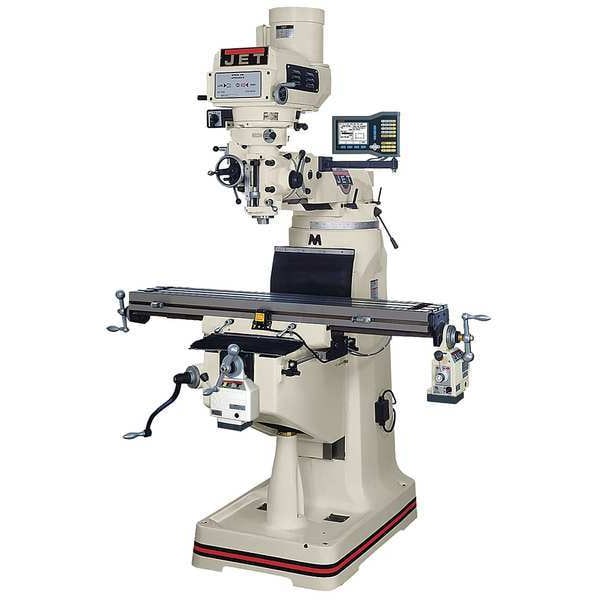

Jet Var Speed Mill Machine, 1Ph, 2HP, 115/230V 690407 - main

Var Speed Mill Machine, 1Ph, 2HP, 115/230V

  • Mfr # 690407

  • Zoro # G9924266

product price: $21,682.99
/ea
Item requires special delivery charges. A $500.00 per item surcharge will be applied.

Key Features

Type
Variable Speed R8
Table Size (In.)
9 x 49
Voltage
115/230V
Motor HP
2
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690407
Zoro #
G9924266
UPC #
662755986246
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
Quill Dia. (In.)
3-3/8
T-Slot Size (In.)
3,5/8
Overall Depth
63 in
Overall Width
65 1/2 in
Overall Height
85 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5 in
Overall Length
65-1/2 in
Spindle Taper Size
R-8
Ram Travel Length
14-1/2 in
Table Length
9 in
Table Width
49 in
Table Work Surface - Depth
9 in
Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in

Details

Type
Variable Speed R8
Voltage
115/230V
Item
Knee/Column Milling Machine
Motor HP
2
Phase
Single
Longitudinal Travel
34 in
Cross Travel
12 in
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
16
Head Angle Front/Back (Deg.)
47
Head Angle (Deg.)
90
Hz
60
Includes
2-Axis ACU-RITE VUE, X and Y-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Quill Travel (In.)
5
Spindle Speed (RPM)
60 to 4200
Spindle to Table (In.)
17-1/2
Spindle Taper
R8
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
Max. Table Weight (lbs.)
660
Ram Travel (In.)
14-1/2
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Number of T-Slots
3
Motor Type
TEFC
Right-Hand Head Tilt
90 Degrees
Backward Head Tilt Adjustment
47 Degrees
Number of Spindle Speeds
Variable
Min. Spindle Speed
60 RPM
Table Load Capacity
660 lb
Left-Hand Head Tilt
90 Degrees
Min. Spindle to Table Distance
17-1/2 in
Max. Spindle to Table Distance
17 1/2 in
Horsepower
2 hp
Max. Spindle Speed
4,200 RPM
Forward Head Tilt
47 Degrees
Maximum Longitudinal Travel
34 in
Head Tilt - Forward
47 Degrees
Spindle to Table Distance
17 1/2 in
Head Swivel - Right
90 Degrees
Head Tilt - Backward
47 Degrees
Maximum Spindle Travel
5 in
Spindle Speed - Maximum
4,200 RPM
Spindle To Column Distance - Maximum
19 in
Maximum Ram Travel
14 1/2 in
Drawbar Style
Manual
Spindle Speed - Minimum
60 RPM
Maximum Cross Travel
12 in
Series
JTM
Spindle to Column Distance - Minimum
19 in
Head Swivel - Left
90 Degrees

Description

Knee/Column Milling Machine, Table Length 9 in, Table Width 49 in, 2 hp, Table Load Capacity 660 lb, Phase Single, Voltage 115/230V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
