  11. Var Speed Mill Machine, 3Ph, 3HP, 230/460V

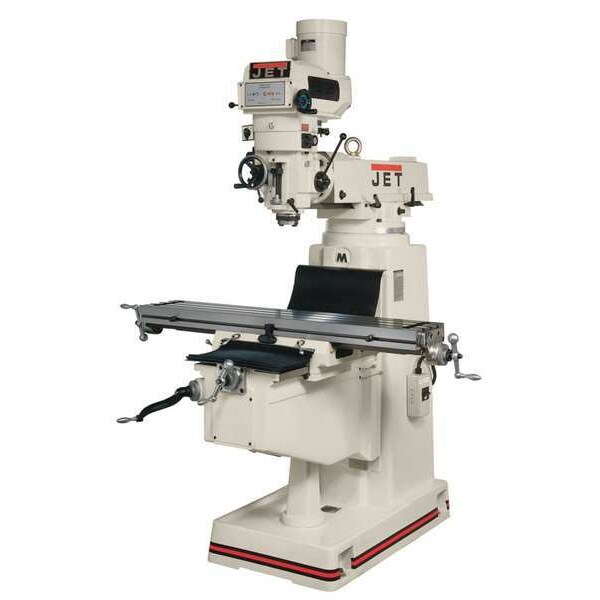

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V 690120 - main

Var Speed Mill Machine, 3Ph, 3HP, 230/460V

  • Mfr # 690120

  • Zoro # G9879161

product price: $21,677.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Variable Speed R8
Table Size (In.)
10 x 50
Voltage
230/460V
Motor HP
3
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690120
Zoro #
G9879161
UPC #
662755515965
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
10 x 50
T-Slot Size (In.)
0 3/8
Overall Width
78 in
Quill Dia. (In.)
3-3/8
Overall Height
88 in
Overall Depth
96 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5 in
Table Length
10 in
Ram Travel Length
20-1/2 in
Table Width
50 in
Overall Length
78 in
Spindle Taper Size
R-8
T-Slot Width
5/8 in
Table Work Surface - Width
50 in
Table Work Surface - Depth
10 in
Quill Diameter
3 3/8 in

Details

Type
Variable Speed R8
Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
35 in
Cross Travel
15-1/4 in
Longitudinal Travel (In.)
35.00
Cross Travel (In.)
15-1/4
Knee Travel (In.)
14-1/4
Features
Meehanite casting, High Precision Class 7 spindle bearings, Hardened and ground table, Chrome lead screws on X and Y axis, Turcite B on X and Y axis, Satin chrome finish on dials, 2 year warranty, 30 point inspection
Hz
60
Spindle Speed (RPM)
70 to 3800
Number of T-Slots
3
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Spindle to Table (In.)
19
Quill Travel (In.)
5
Head Angle Front/Back (Deg.)
45
Spindle Taper
R8
Includes
17 mm/19 mm Box Wrench, Can White Touch up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box
Head Angle (Deg.)
90
Max. Table Weight (lbs.)
720
Ram Travel (In.)
20-1/2
Motor Type
Totally Enclosed Fan-Cooled
Min. Spindle Speed
70 RPM
Min. Spindle to Table Distance
19 in
Max. Spindle Speed
3,800 RPM
Number of Spindle Speeds
Variable
Left-Hand Head Tilt
90 Degrees
Backward Head Tilt Adjustment
45 Degrees
Min. Spindle to Column Distance
5-1/2 in
Table Load Capacity
720 lb
Max. Spindle to Table Distance
19 in
Horsepower
3 hp
Right-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
26 in
Forward Head Tilt
45 Degrees
Spindle To Column Distance - Maximum
26 in
Head Tilt - Backward
45 Degrees
Includes Digital Readout
No Digital Readout
Spindle Speed - Maximum
3,800 RPM
Maximum Knee Travel
14 1/4 in
Maximum Ram Travel
20 1/2 in
Maximum Spindle Travel
5 in
Current
4.1 A, 8.2 A
Manufacturer Warranty
2 yr
Maximum Cross Travel
15 1/4 in
Head Swivel - Left
90 Degrees
Series
JTM-1050VS2
Head Swivel - Right
90 Degrees
Maximum Longitudinal Travel
35 in
Included Powerfeeds
X-Axis Powerfeed
Frequency
60 Hz
Collet Capacity -Maximum
7/8 in
Motor Speed - Maximum
1,720 RPM
Spindle to Column Distance - Minimum
5 1/2 in
Head Tilt - Forward
45 Degrees
Spindle to Table Distance
19 in
Collet Capacity -Minimum
1/8 in
Sound Level
75 dB
Spindle Speed - Minimum
70 RPM

Description

Vertical Milling Machine, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 35 in, Cross Travel 15-1/4 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
