  11. Var Speed Mill Machine, 3Ph, 3HP, 230/460V

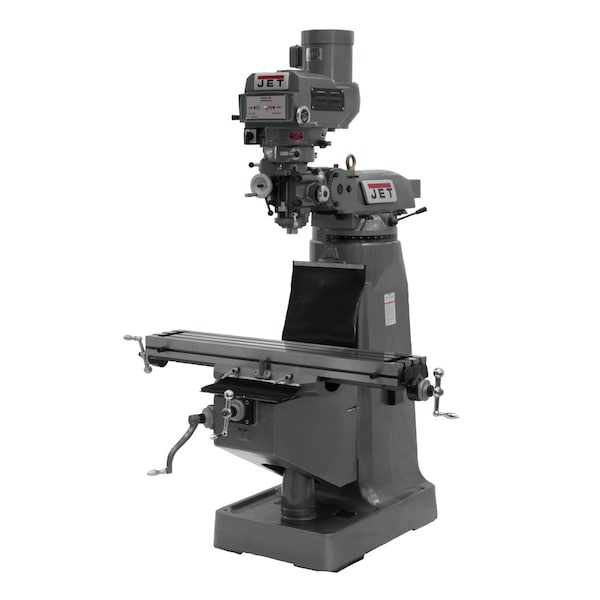

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V 690184 - main

Var Speed Mill Machine, 3Ph, 3HP, 230/460V

  • Mfr # 690184

  • Zoro # G1940467

product price: $19,800.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Variable Speed R8
Table Size (In.)
9 x 49
Voltage
230/460
Motor HP
3
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690184
Zoro #
G1940467
UPC #
662755516214
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
Overall Depth
63
Overall Width
65-1/2
Overall Height
85
Quill Dia. (In.)
3-3/8
T-Slot Size (In.)
0 3/8

Details

Type
Variable Speed R8
Voltage
230/460
Item
Variable Speed Milling Machine
Motor HP
3
Phase
3
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
14-1/2
Number of T-Slots
3
Head Angle Front/Back (Deg.)
45
Spindle Taper
R-8
Head Angle (Deg.)
90
Spindle to Table (In.)
17-1/2
Hz
60
Includes
3 (Quill)-Axis ACU-RITE 200S , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Spindle Speed (RPM)
60 to 4200
Max. Table Weight (lbs.)
660
Ram Travel (In.)
13-3/8
Quill Travel (In.)
5
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection

Description

Variable Speed Milling Machine, Phase 3, Voltage 230/460
