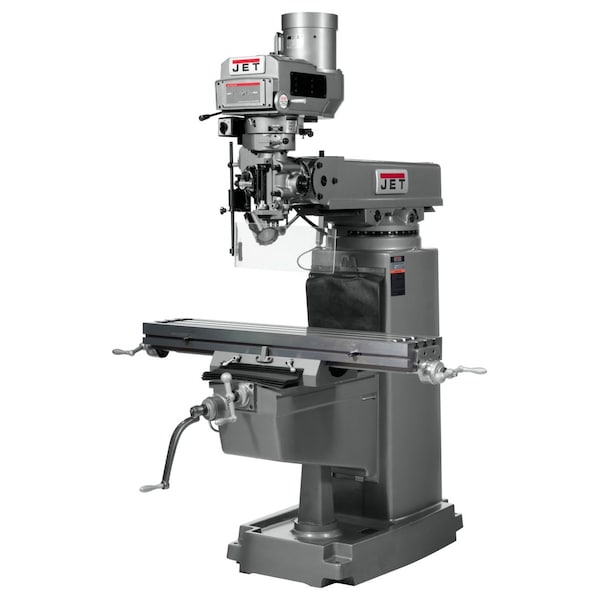

Var Speed Mill Machine, 3Ph, 3HP, 230/460V
Mfr # 691208
Zoro # G1940570
product price:Â
$
22,726.99
/ea
Additional $550.00 delivery surcharge applies per item.
Key Features
Type
Variable Speed R8
Table Size (In.)
10 x 50
Voltage
230/460
Motor HP
3 hp
Phase
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 691208
- Zoro #
- G1940570
- UPC #
- 662755513633
- Country of Origin
- Taiwan, Province of China
- Type
- Variable Speed R8
- Voltage
- 230/460
- Item
- Variable Speed Milling Machine
- Motor HP
- 3 hp
- Phase
- 3
- Longitudinal Travel (In.)
- 35.00
- Cross Travel (In.)
- 15-1/4
- Knee Travel (In.)
- 14-1/4
- Head Angle Front/Back (Deg.)
- 45
- Spindle to Table (In.)
- 19
- Quill Travel (In.)
- 5
- Number of T-Slots
- 3
- Max. Table Weight (lbs.)
- 720
- Ram Travel (In.)
- 20-1/2
- Hz
- 60
- Head Angle (Deg.)
- 90
- Spindle Taper
- R-8
- Includes
- 3 (Quill)-Axis Newall DP700, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
- Spindle Speed (RPM)
- 70 to 3800
- Features
- Meehanite casting, High Precision Class 7 spindle bearings, Hardened and ground table, Chrome lead screws on X and Y axis, Turcite B on X and Y axis, Satin chrome finish on dials, 2 year warranty, 30 point inspection
- Feed Rate for Power Down Feed (In.)
- 0.0015, 0.003, 0.006
Description
Variable Speed Milling Machine, Phase 3, Voltage 230/460
