  11. Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

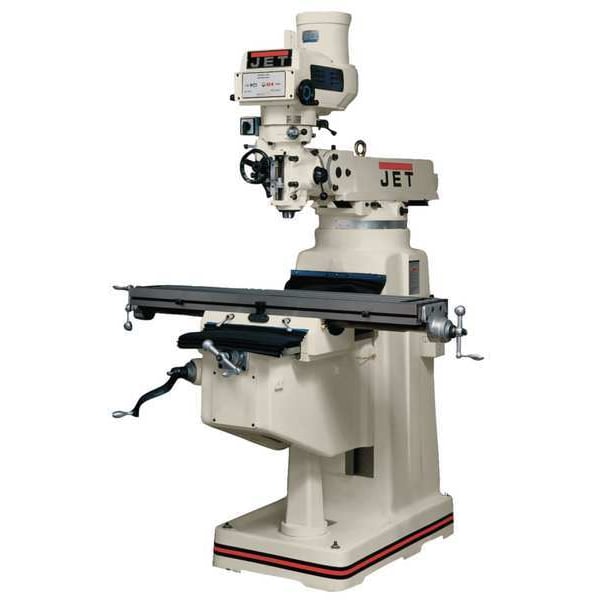

Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V 690117 - main

Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

  • Mfr # 690117

  • Zoro # G9879177

product price: $23,941.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Voltage
230/460V
Motor HP
3
Phase
Three
Longitudinal Travel
35 in
Cross Travel
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690117
Zoro #
G9879177
UPC #
662755137136
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
88 in
Overall Width
78 in
Overall Depth
96 in
Quill Dia.
3 3/8 in
Table Length
10 in
Ram Travel Length
20-1/2 in
Spindle Taper Size
R-8
Table Width
50 in
Overall Length
78 in
Spindle Travel Length
5 in
Table Work Surface - Width
50 in
Quill Diameter
3 3/8 in
T-Slot Width
5/8 in
Table Work Surface - Depth
10 in

Details

Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
35 in
Cross Travel
12 in
Features
Mechanize Casting, Hardened and Ground Table, Chrome Lead Screws on X and Y Axis, Turcite B on X and Y Axis, Satin Chrome Finish on Dials, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearing, Spindle Head is Internally Cooled, No Fuse Breaker Power Connection, Heavy Duty Motor Drive, Chrome Plated Motor Shaft with Bearing Support at End, one Piece Quill Pinion and Shaft, Three Stage Power Down Feed with Automatic Stop, Heavy Duty Spindle Break, Locks on All Movable Surfaces, Hardened and Ground Square Vertical Knee Ways, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
Spindle Taper
R8
Hz
60
Includes
17 mm/19 mm Box Wrench, Can White Touch up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box
Number of T-Slots
3
Motor Type
Totally Enclosed Fan-Cooled
Forward Head Tilt
45 Degrees
Backward Head Tilt Adjustment
45 Degrees
Number of Spindle Speeds
Variable
Horsepower
3 hp
Max. Spindle to Table Distance
19 in
Min. Spindle Speed
70 RPM
Right-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
26 in
Left-Hand Head Tilt
90 Degrees
Max. Spindle Speed
3,800 RPM
Min. Spindle to Column Distance
5-1/2 in
Table Load Capacity
720 lb
Sound Level
75 dB
Spindle To Column Distance - Maximum
26 in
Maximum Longitudinal Travel
35 in
Head Swivel - Left
90 Degrees
Head Swivel - Right
90 Degrees
Includes Digital Readout
Digital Readout Included
Head Tilt - Forward
45 Degrees
Collet Capacity -Maximum
7/8 in
Series
JTM-1050VS2
Digital Readout Included
Acu-Rite 203
Maximum Cross Travel
15 1/4 in
Maximum Knee Travel
14 1/4 in
Spindle to Table Distance
19 in
Frequency
60 Hz
Included Powerfeeds
X-Axis Powerfeed
Spindle Speed - Maximum
3,800 RPM
Spindle to Column Distance - Minimum
5 1/2 in
Head Tilt - Backward
45 Degrees
Maximum Ram Travel
20 1/2 in
Maximum Spindle Travel
5 in
Manufacturer Warranty
2 yr
Current
4.1 A, 8.2 A
Motor Speed - Maximum
1,720 RPM
Collet Capacity -Minimum
1/8 in
Spindle Speed - Minimum
70 RPM

Description

Vertical Milling Machine, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 35 in, Cross Travel 12 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
