  9. Variable Speed Milling Machine, 3 HP, CNC

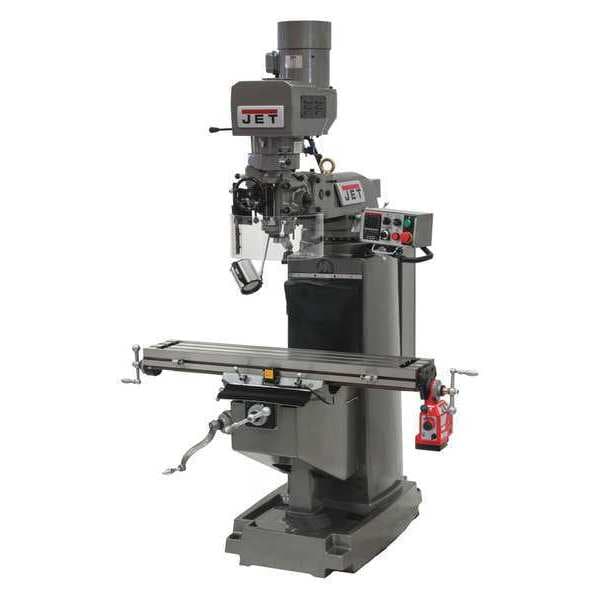

Jet Variable Speed Milling Machine, 3 HP, CNC 690575 - main

Variable Speed Milling Machine, 3 HP, CNC

  • Mfr # 690575

  • Zoro # G4327395

product price: $51,196.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
Durability, Certified Meehanite(R) Castings, Class 7 Bearings Support The Spindle for Maximum Ridgity In Heavy Cutting Applications, Precision Bored and Honed Milling Head, Spindle Head is Internally Cooled Extending Bearing, Belt and Motor Life, Quick Spindle Feed Nut Easily Adjusts to Different Depths, Quill Pinion and Shaft, Three-Stage Power Downfeed with Automatic Stop, Heavy-Duty Spindle Brake, Precision Hardened and Ground Ways and Table, 2 Axis
Type
CNC
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Max. Table Weight (lbs.)
720
Spindle to Table (In.)
20-3/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690575
Zoro #
G4327395
UPC #
731325452556
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
T-Slot Size (In.)
5/8
Quill Dia. (In.)
3-3/8
Overall Depth
67 in
Overall Width
64 in
Overall Height
86 in
Table Width
49 in
Table Length
9 in
Quill Dia.
3 3/8 in
Spindle Taper Size
R-8
Spindle Travel Length
5 in
Overall Length
64 in
Ram Travel Length
15-1/4 in
Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in
T-Slot Width
5/8 in
Column Width
18 in
T-Slot Depth
3/4 in
Table Work Surface - Depth
9 in

Details

Item
Vertical Milling Machine with 2-Axis CNC
Features
Durability, Certified Meehanite(R) Castings, Class 7 Bearings Support The Spindle for Maximum Ridgity In Heavy Cutting Applications, Precision Bored and Honed Milling Head, Spindle Head is Internally Cooled Extending Bearing, Belt and Motor Life, Quick Spindle Feed Nut Easily Adjusts to Different Depths, Quill Pinion and Shaft, Three-Stage Power Downfeed with Automatic Stop, Heavy-Duty Spindle Brake, Precision Hardened and Ground Ways and Table, 2 Axis
Type
CNC
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Max. Table Weight (lbs.)
720
Spindle to Table (In.)
20-3/4
Ram Travel (In.)
15-1/4
Spindle Speed (RPM)
60 to 4500
Cross Travel (In.)
12-5/8
Knee Travel (In.)
15-3/4
Quill Travel (In.)
5
Head Angle (Deg.)
90
Spindle Taper
R8
Number of T-Slots
3
Phase
Three
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Motor HP
3
Head Angle Front/Back (Deg.)
45
Longitudinal Travel (In.)
36.00
Hz
60
Voltage
230V
Longitudinal Travel
36 in
Forward Head Tilt
45 Degrees
Backward Head Tilt Adjustment
45 Degrees
Horsepower
3 hp
Min. Spindle to Table Distance
20-3/4 in
Max. Spindle Speed
4,500 RPM
Number of Spindle Speeds
Variable
Right-Hand Head Tilt
90 Degrees
Table Load Capacity
720 lb
Max. Spindle To Column Distance
18-1/8 in
Min. Spindle Speed
60 RPM
Left-Hand Head Tilt
90 Degrees
Max. Spindle to Table Distance
20 3/4 in
Min. Spindle to Column Distance
4-3/4 in
Series
JTM-949EVS/230
Maximum Ram Travel
15 1/4 in
Spindle Speed - Minimum
60 RPM
Motor Speed - Maximum
1,720 RPM
Spindle to Table Distance
20 3/4 in
Head Swivel - Right
90 Degrees
Motor Type
Totally Enclosed Fan-Cooled
Collet Capacity -Maximum
7/8 in
Maximum Spindle Travel
5 in
Manufacturer Warranty
2 yr
Collet Capacity -Minimum
1/8 in
Spindle To Column Distance - Maximum
18 1/8 in
Frequency
60 Hz
Maximum Cross Travel
12 5/8 in
Head Tilt - Backward
45 Degrees
Head Tilt - Forward
45 Degrees
Head Swivel - Left
90 Degrees
Current
8 A
Sound Level
72 dB
Maximum Longitudinal Travel
36 in
Spindle Speed - Maximum
4,500 RPM
Included CNC Package
2-Axis
Maximum Knee Travel
15 3/4 in
Spindle to Column Distance - Minimum
5 1/4 in

Description

Vertical Milling Machine with 2-Axis CNC, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230V, Longitudinal Travel 36 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM
