  9. Variable Speed Milling Machine, 3 HP, CNC

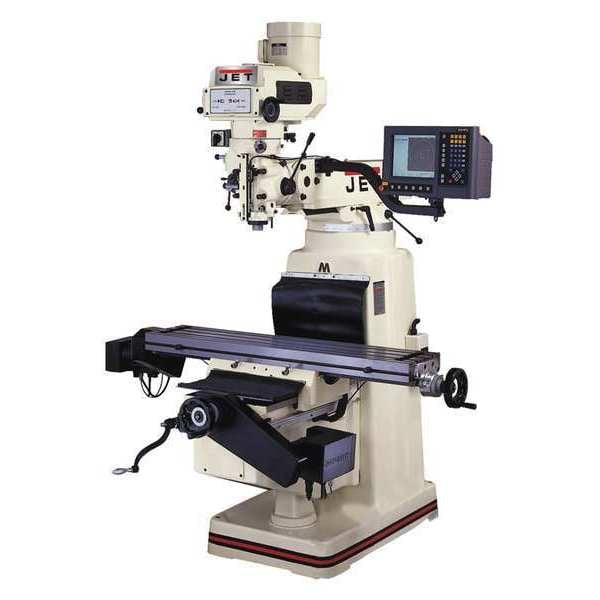

Jet Variable Speed Milling Machine, 3 HP, CNC 690930 - main

Variable Speed Milling Machine, 3 HP, CNC

  • Mfr # 690930

  • Zoro # G4327438

product price: $63,697.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
CNC Vertical Milling Machine Package JTM-1050, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 2 Axis
Type
CNC
Includes
17 mm/19 mm Box Wrench, Can White Touch up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box
Max. Table Weight (lbs.)
720
Quill Dia. (In.)
3-3/8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690930
Zoro #
G4327438
UPC #
731325335101
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia. (In.)
3-3/8
Overall Depth
96 in
Overall Height
88 in
Overall Width
78 in
T-Slot Size (In.)
5/8
Table Size (In.)
10 x 50
Table Length
10 in
Table Width
50 in
Ram Travel Length
20-1/2 in
Spindle Taper Size
R-8
Spindle Travel Length
5 in
Quill Dia.
3 3/8 in
Overall Length
78 in
Table Work Surface - Depth
10 in
Table Work Surface - Width
50 in
Quill Diameter
3 3/8 in
T-Slot Width
5/8 in

Details

Item
Vertical Milling Machine with 2-Axis CNC
Features
CNC Vertical Milling Machine Package JTM-1050, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 2 Axis
Type
CNC
Includes
17 mm/19 mm Box Wrench, Can White Touch up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box
Max. Table Weight (lbs.)
720
Ram Travel (In.)
20-1/2
Spindle Speed (RPM)
70 to 3800
Hz
60
Longitudinal Travel (In.)
35.00
Head Angle Front/Back (Deg.)
45
Spindle Taper
R8
Quill Travel (In.)
5
Head Angle (Deg.)
90
Voltage
230/460V
Cross Travel (In.)
15-1/4
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Phase
Three
Knee Travel (In.)
14-1/4
Number of T-Slots
3
Spindle to Table (In.)
19
Motor HP
3
Min. Spindle to Column Distance
5-1/2 in
Horsepower
3 hp
Max. Spindle To Column Distance
26 in
Max. Spindle Speed
3,800 RPM
Number of Spindle Speeds
Variable
Max. Spindle to Table Distance
19 in
Right-Hand Head Tilt
90 Degrees
Min. Spindle Speed
70 RPM
Backward Head Tilt Adjustment
45 Degrees
Left-Hand Head Tilt
90 Degrees
Min. Spindle to Table Distance
19 in
Table Load Capacity
720 lb
Longitudinal Travel
35 in
Forward Head Tilt
45 Degrees
Series
JTM-1050
Motor Type
Totally Enclosed Fan-Cooled
Current
4.1 A, 8.2 A
Maximum Knee Travel
14 1/4 in
Spindle Speed - Maximum
3,800 RPM
Head Tilt - Backward
45 Degrees
Sound Level
75 dB
Head Swivel - Left
90 Degrees
Spindle To Column Distance - Maximum
26 in
Motor Speed - Maximum
1,720 RPM
Included CNC Package
2-Axis
Head Tilt - Forward
45 Degrees
Maximum Longitudinal Travel
35 in
Maximum Ram Travel
20 1/2 in
Spindle Speed - Minimum
70 RPM
Maximum Spindle Travel
5 in
Maximum Cross Travel
15 1/4 in
Frequency
60 Hz
Collet Capacity -Maximum
7/8 in
Head Swivel - Right
90 Degrees
Manufacturer Warranty
2 yr
Spindle to Table Distance
19 in
Collet Capacity -Minimum
1/8 in
Spindle to Column Distance - Minimum
5 1/2 in

Description

Vertical Milling Machine with 2-Axis CNC, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 35 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
