  9. Variable Speed Milling Machine, 3 HP, CNC

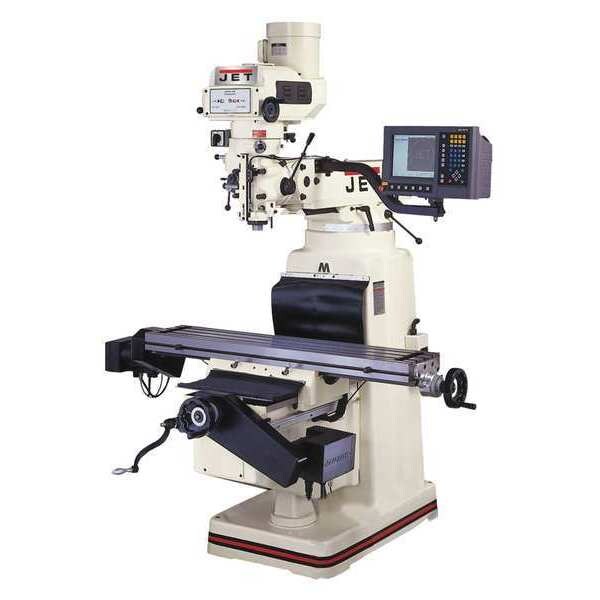

Jet Variable Speed Milling Machine, 3 HP, CNC 690938 - main

Variable Speed Milling Machine, 3 HP, CNC

  • Mfr # 690938

  • Zoro # G4327377

product price: $48,319.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
CNC Vertical Milling Machine Package JTM-4VS, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 2 Axis
Type
CNC
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
T-Slot Size (In.)
5/8
Head Angle (Deg.)
90
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690938
Zoro #
G4327377
UPC #
731325335163
Country of Origin
Taiwan, Province of China

Dimensions

T-Slot Size (In.)
5/8
Overall Width
63 in
Overall Depth
66 in
Overall Height
85 in
Table Size (In.)
9 x 49
Quill Dia. (In.)
3-3/8
Table Length
9 in
Table Width
49 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5 in
Overall Length
63 in
Ram Travel Length
13-3/8 in
Spindle Taper Size
R-8
T-Slot Width
5/8 in
Quill Diameter
3 3/8 in
Table Work Surface - Width
49 in
T-Slot Depth
3/4 in
Table Work Surface - Depth
9 in

Details

Item
Vertical Milling Machine with 2-Axis CNC
Features
CNC Vertical Milling Machine Package JTM-4VS, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 2 Axis
Type
CNC
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
Head Angle (Deg.)
90
Spindle Taper
R8
Head Angle Front/Back (Deg.)
45
Knee Travel (In.)
14-1/2
Number of T-Slots
3
Voltage
230/460V
Ram Travel (In.)
13-3/8
Max. Table Weight (lbs.)
660
Cross Travel (In.)
12
Spindle to Table (In.)
17-1/2
Hz
60
Longitudinal Travel (In.)
34.00
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Spindle Speed (RPM)
60 to 4200
Motor HP
3
Phase
Three
Quill Travel (In.)
5
Min. Spindle to Table Distance
17-1/2 in
Number of Spindle Speeds
Variable
Min. Spindle Speed
60 RPM
Min. Spindle to Column Distance
4-1/2 in
Backward Head Tilt Adjustment
45 Degrees
Max. Spindle Speed
4,200 RPM
Max. Spindle to Table Distance
17 1/2 in
Longitudinal Travel
34 in
Forward Head Tilt
45 Degrees
Max. Spindle To Column Distance
19 in
Right-Hand Head Tilt
90 Degrees
Table Load Capacity
660 lb
Left-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Series
JTM-4VS
Maximum Cross Travel
12 in
Head Tilt - Backward
45 Degrees
Maximum Knee Travel
14 1/2 in
Maximum Longitudinal Travel
34 in
Head Swivel - Right
90 Degrees
Spindle To Column Distance - Maximum
19 in
Frequency
60 Hz
Spindle to Column Distance - Minimum
4 1/2 in
Head Tilt - Forward
45 Degrees
Included CNC Package
2-Axis
Collet Capacity -Maximum
7/8 in
Motor Type
Totally Enclosed Fan-Cooled
Spindle to Table Distance
17 1/2 in
Spindle Speed - Minimum
60 RPM
Maximum Ram Travel
13 3/8 in
Spindle Speed - Maximum
4,200 RPM
Manufacturer Warranty
2 yr
Maximum Spindle Travel
5 in
Collet Capacity -Minimum
1/8 in
Head Swivel - Left
90 Degrees

Description

Vertical Milling Machine with 2-Axis CNC, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 660 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 34 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
