Shop JET

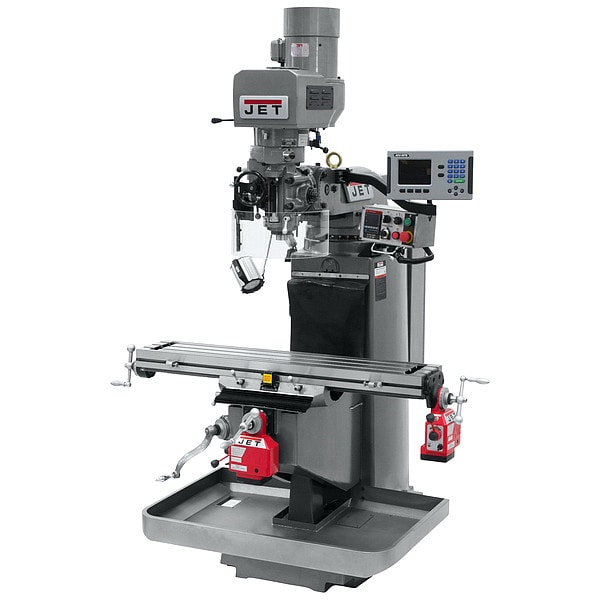

Variable Speed Milling Machine, 3 HP, EVS

  • Mfr # 690522

  • Zoro # G4327331

product price:  $29,031.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Features
Jet Designed Certified Meehanite(R) Casting with Enhanced Ribbing Ensures Rigidity and Tolerance Retention, Swing Away Control Box Houses An E-Stop and Puts All Controls At The Operators Fingertips, The Innovative Design of The Machine Base Provides An Easier Solution to Level The Machine Without Raising It Up Off The Floor, Automatic Oiler Releases 3 to 6 CC/CY of Lubrication Every 30 min. for Added Safety, The Heavy-Duty Spindle Break Stops The Spindle and Interrupts The Power, Preventing Accidental Start-Ups, The Electrical Box Has Been Relocated to The Back of The Mill and Houses (2) 115V Outlets for Powered Accessories, CSA/CUS Certified, Class 7 Spindle Bearings Support The Spindle for Maximum Rigidity In Heavy Cutting Applications, Spindle Head Is Internally Cooled Extending Bearing, Belt and Motor Life, Table and Ways are Hardened and Precision Ground for Greater Accuracy, 2 Axis
Type
EVS
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Overall Width
64 in
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
690522
Zoro #
G4327331
UPC #
731325451740
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
64 in
T-Slot Size (In.)
5/8
Quill Dia. (In.)
3-3/8
Table Size (In.)
9 x 49
Overall Depth
67 in
Overall Height
86 in
Table Width
49 in
Table Length
9 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5 in
Ram Travel Length
15-1/4 in
Overall Length
64 in
Spindle Taper Size
R-8
T-Slot Width
5/8 in
Quill Diameter
3 3/8 in
Table Work Surface - Width
49 in
T-Slot Depth
3/4 in
Column Width
18 in
Table Work Surface - Depth
9 in

Details

Item
Vertical Milling Machine
Features
Jet Designed Certified Meehanite(R) Casting with Enhanced Ribbing Ensures Rigidity and Tolerance Retention, Swing Away Control Box Houses An E-Stop and Puts All Controls At The Operators Fingertips, The Innovative Design of The Machine Base Provides An Easier Solution to Level The Machine Without Raising It Up Off The Floor, Automatic Oiler Releases 3 to 6 CC/CY of Lubrication Every 30 min. for Added Safety, The Heavy-Duty Spindle Break Stops The Spindle and Interrupts The Power, Preventing Accidental Start-Ups, The Electrical Box Has Been Relocated to The Back of The Mill and Houses (2) 115V Outlets for Powered Accessories, CSA/CUS Certified, Class 7 Spindle Bearings Support The Spindle for Maximum Rigidity In Heavy Cutting Applications, Spindle Head Is Internally Cooled Extending Bearing, Belt and Motor Life, Table and Ways are Hardened and Precision Ground for Greater Accuracy, 2 Axis
Type
EVS
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Phase
Three
Max. Table Weight (lbs.)
720
Longitudinal Travel (In.)
36.00
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Head Angle (Deg.)
90
Number of T-Slots
3
Spindle to Table (In.)
20-3/4
Head Angle Front/Back (Deg.)
45
Cross Travel (In.)
12-5/8
Voltage
230V
Quill Travel (In.)
5
Spindle Speed (RPM)
60 to 4500
Spindle Taper
R8
Hz
60
Ram Travel (In.)
15-1/4
Knee Travel (In.)
15-3/4
Motor HP
3
Backward Head Tilt Adjustment
45 Degrees
Min. Spindle Speed
60 RPM
Number of Spindle Speeds
Variable
Longitudinal Travel
36 in
Right-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
18-1/8 in
Left-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Max. Spindle Speed
4,500 RPM
Forward Head Tilt
45 Degrees
Max. Spindle to Table Distance
20 3/4 in
Min. Spindle to Table Distance
20-3/4 in
Table Load Capacity
720 lb
Min. Spindle to Column Distance
4-3/4 in
Series
JTM-949EVS
Standards
CSA/CUS
Drawbar Style
Manual
Maximum Cross Travel
12 5/8 in
Spindle to Table Distance
20 3/4 in
Manufacturer Warranty
2 yr
Spindle to Column Distance - Minimum
5 1/4 in
Collet Capacity -Maximum
7/8 in
Head Swivel - Left
90 Degrees
Includes Digital Readout
Digital Readout Included
Maximum Longitudinal Travel
36 in
Maximum Knee Travel
15 3/4 in
Spindle To Column Distance - Maximum
18 1/8 in
Maximum Spindle Travel
5 in
Head Swivel - Right
90 Degrees
Collet Capacity -Minimum
1/8 in
Head Tilt - Forward
45 Degrees
Maximum Ram Travel
15 1/4 in
Digital Readout Included
Acu-Rite 203
Milling Head Drive
Belt Drive
Current
8 A
Motor Type
Totally Enclosed Fan-Cooled
Spindle Speed - Maximum
4,500 RPM
Sound Level
72 dB
Head Tilt - Backward
45 Degrees
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed
Spindle Speed - Minimum
60 RPM
Motor Speed - Maximum
1,720 RPM
Frequency
60 Hz

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230V, Longitudinal Travel 36 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM
