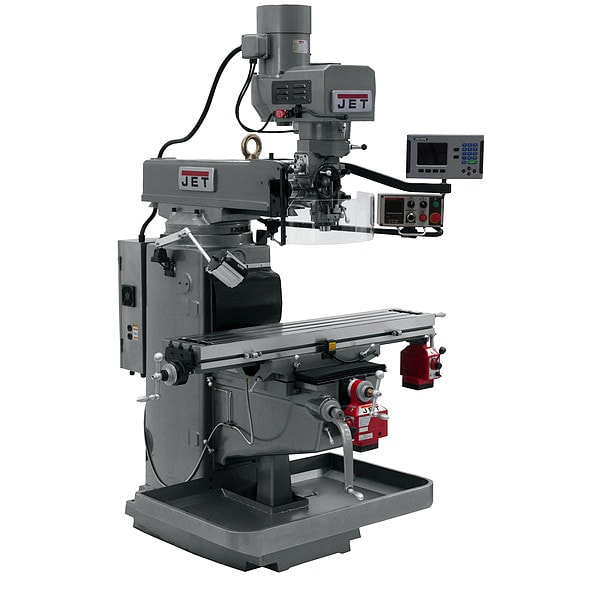

Variable Speed Milling Machine, 3 HP, EVS

  • Mfr # 690621

  • Zoro # G4327359


product price: $29,683.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
Jet Designed Certified Meehanite(R) Casting with Enhanced Ribbing Ensures Rigidity and Tolerance Retention, Swing Away Control Box Houses An E-Stop and Puts All Controls At The Operators Fingertips, The Innovative Design of The Machine Base Provides An Easier Solution to Level The Machine Without Raising It Up Off The Floor, Automatic Oiler Releases 3 to 6 CC/CY of Lubrication Every 30 min. for Added Safety, The Heavy-Duty Spindle Break Stops The Spindle and Interrupts The Power, Preventing Accidental Start-Ups, The Electrical Box Has Been Relocated to The Back of The Mill and Houses (2) 115V Outlets for Powered Accessories, CSA/CUS Certified, Class 7 Spindle Bearings Support The Spindle for Maximum Rigidity In Heavy Cutting Applications, Spindle Head Is Internally Cooled Extending Bearing, Belt and Motor Life, Table and Ways are Hardened and Precision Ground for Greater Accuracy, 2 Axis
Type
EVS
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Longitudinal Travel (In.)
35.30
Number of T-Slots
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690621
Zoro #
G4327359
UPC #
731325452211
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
66 in
Quill Dia. (In.)
3-3/8
Overall Width
63 in
Overall Height
87 in
T-Slot Size (In.)
5/8
Table Size (In.)
10 x 50
Table Length
10 in
Table Width
50 in
Overall Length
66"
Ram Travel Length
15-7/8"
Spindle Travel Length
5"
Spindle Taper Size
R-8
Quill Dia.
3 3/8 in
Column Width
20 in
Table Work Surface - Depth
10 in
T-Slot Depth
3/4 in
Table Work Surface - Width
50 in
T-Slot Width
5/8 in
Quill Diameter
3 3/8 in

Details

Item
Vertical Milling Machine
Features
Jet Designed Certified Meehanite(R) Casting with Enhanced Ribbing Ensures Rigidity and Tolerance Retention, Swing Away Control Box Houses An E-Stop and Puts All Controls At The Operators Fingertips, The Innovative Design of The Machine Base Provides An Easier Solution to Level The Machine Without Raising It Up Off The Floor, Automatic Oiler Releases 3 to 6 CC/CY of Lubrication Every 30 min. for Added Safety, The Heavy-Duty Spindle Break Stops The Spindle and Interrupts The Power, Preventing Accidental Start-Ups, The Electrical Box Has Been Relocated to The Back of The Mill and Houses (2) 115V Outlets for Powered Accessories, CSA/CUS Certified, Class 7 Spindle Bearings Support The Spindle for Maximum Rigidity In Heavy Cutting Applications, Spindle Head Is Internally Cooled Extending Bearing, Belt and Motor Life, Table and Ways are Hardened and Precision Ground for Greater Accuracy, 2 Axis
Type
EVS
Includes
(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Longitudinal Travel (In.)
35.30
Number of T-Slots
3
Max. Table Weight (lbs.)
840
Ram Travel (In.)
15-7/8
Voltage
230V
Head Angle (Deg.)
90
Spindle to Table (In.)
20-3/4
Head Angle Front/Back (Deg.)
45
Knee Travel (In.)
16-1/8
Spindle Taper
R8
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Quill Travel (In.)
5
Motor HP
3
Hz
60
Phase
Three
Spindle Speed (RPM)
60 to 4500
Cross Travel (In.)
14-3/4
Number of Spindle Speeds
Variable
Left-Hand Head Tilt
90 Degrees
Min. Spindle to Table Distance
20-3/4 in
Max. Spindle To Column Distance
26-3/4"
Table Load Capacity
840 lb
Max. Spindle to Table Distance
20 3/4 in
Max. Spindle Speed
4,500 RPM
Min. Spindle Speed
60 RPM
Backward Head Tilt Adjustment
45 Degrees
Right-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Forward Head Tilt
45 Degrees
Min. Spindle to Column Distance
4-3/4"
Longitudinal Travel
35-1/3"
Spindle Speed Control
Variable Speed Pulley
Cross Travel
14-3/4"
Series
JTM-1050EVS2/230
Spindle Speed - Maximum
4,500 RPM
Motor Type
Totally Enclosed Fan-Cooled
Frequency
60 Hz
Collet Capacity -Maximum
7/8 in
Maximum Longitudinal Travel
35 5/16 in
Head Swivel - Right
90 Degrees
Manufacturer Warranty
2 yr
Head Tilt - Backward
45 Degrees
Includes Digital Readout
Digital Readout Included
Maximum Ram Travel
15 7/8 in
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed
Head Swivel - Left
90 Degrees
Collet Capacity -Minimum
1/8 in
Sound Level
72 dB
Maximum Knee Travel
16 1/8 in
Maximum Spindle Travel
5 in
Spindle Speed - Minimum
60 RPM
Digital Readout Included
Acu-Rite 203
Standards
CSA/CUS
Spindle to Table Distance
20 3/4 in
Maximum Cross Travel
14 3/4 in
Head Tilt - Forward
45 Degrees
Motor Speed - Maximum
1,720 RPM
Spindle to Column Distance - Minimum
5 7/8 in
Spindle To Column Distance - Maximum
26 3/4 in

Description

Vertical Milling Machine, Spindle Speed Control Variable Speed Pulley, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 840 lb, Phase Three, Voltage 230V, Longitudinal Travel 35-1/3 In., Cross Travel 14-3/4 In., Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM
