Shop JOHNSON CONTROLS

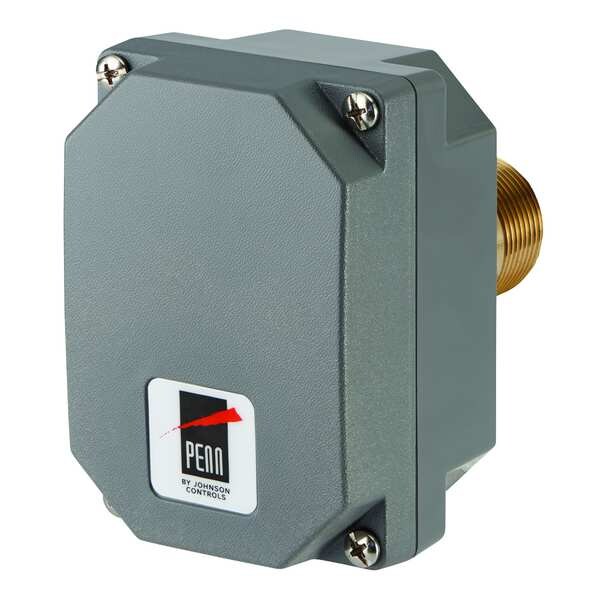

1" MNPT SPDT Flow Switch 24V-230V 760 gpm

  • Mfr # F261MAH-V01C

  • Zoro # G0081335

product price:
$
290.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1 MNPT
Switch Type
SPDT
Voltage
24V-230V
Max. Pressure
290 psi
Max. Flow GPM
760 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F261MAH-V01C
Zoro #
G0081335
UPC #
-
Country of Origin
Mexico

Dimensions

Connection Size (In.)
1 MNPT
For Pipe Size
1 in, 2 in, 3 in, 6 in
Overall Height
11.3 in
Connection Size
1 in
Overall Width
6 in

Details

Switch Type
SPDT
Voltage
24V-230V
Max. Pressure
290 psi
Max. Flow GPM
760 gpm
Item
Flow Switch
Min. Fluid Temp. (F)
-20 Degrees F
Float Switch Contact Form
SPDT
Max. Ambient Temp. (F)
140 Degrees F
Min. Ambient Temp. (F)
-40 Degrees
Wetted Materials
Viton
Contact Rating
16A @ 120V AC - Full Load
For Use With
liquids
Max. Pressure (PSI)
290 psi
Flow Rate
2.5 gpm to 760 gpm
Body Material
Plastic with Stainless Steel Paddle
Max. HP
1 hp
Application
F261 Series Flow Switches Respond to Fluid Flow inLines Carrying Water, Ethylene Glycol, or Other Nonhazardous Fluids. These Models Also Work in Applications with Swimming Pool Water and Lubricating Oils.
Compliance
CE, RCM Compliant, UL
Type
Standard Flow
Min. Flow Rate (GPM)
2.5 gpm
Switch Enclosure
NEMA 4
Max. Fluid Temp. (F)
250 Degrees F
Standards
CE Certified, FCC to CFR47, Part 15, Subpart B, Class B Industry Canada (IC) to Canadian ICES-003, Class B limits, North America: cULus Listed, UL60730, File E6688
Ambient Temperature - Minimum
-40 Degrees F
Wetted Material
Viton
Horsepower - Maximum
1 hp
Housing Material
Stainless Steel
Media Temperature - Maximum
250 Degrees F
Frequency
50 Hz, 60 Hz
Media Temperature - Minimum
-20 Degrees F
Set Point Configuration
Adjustable
Flow Rate - Minimum
2.5 gpm
Contact Rating (AC)
16 A @ 120V (Full Load)
Flow Rate - Maximum
760 gpm
Flow Switch Type
Paddle
Ambient Temperature - Maximum
140 Degrees F
Connection Type
NPT

Description

Flow Switch, Ambient Temperature - Maximum 140 Degrees F, Ambient Temperature - Minimum -40 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 16 A @ 120V (Full Load), Flow Rate - Maximum 760 gpm, Flow Rate - Minimum 2.5 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, 2 in, 3 in, 6 in, Frequency 50 Hz, 60 Hz, Horsepower - Maximum 1 hp, Housing Material Stainless Steel, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum -20 Degrees F
