Shop JOHNSON CONTROLS

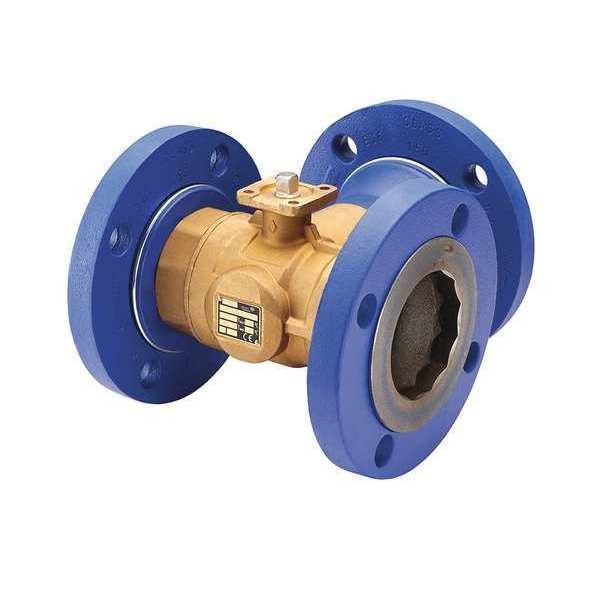

Control Ball Valve, 3-Way, 173 Coefficient

  • Mfr # VG18A5LV

  • Zoro # G9895658

product price:
$
1,164.99
/ea
Free Shipping & Returns

Key Features

Closeoff Pressure
50 psi
Height
13 in
Material
Brass, Stainless Steel
Max. Water Temp.
284 Degrees F
Depth
13 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VG18A5LV
Zoro #
G9895658
UPC #
-
Country of Origin
Mexico
Item
HVAC Control Ball Valve
Closeoff Pressure
50 psi
Material
Brass, Stainless Steel
Max. Water Temp.
284 Degrees F
Valve Only/Actuator Included
Valve Only
Safe Working Steam PSI
25
Coefficient of Volume
173
Connection Type
Flanged
For Use With
Mfr. No. M9000
Safe Working Water PSI
250 psi
Valve Type
3-Way
Application
Control of Hot/Chilled Water
Stem Material
Stainless Steel
Includes Actuator
Actuator Not Included
Port Connection Type
Flanged
Rangeability
500:1
Close-Off Pressure
50 psi
Valve Style
Mixing
Operating Temperature - Minimum
0 Degrees F
Coefficient of Volume (Cv)
173
ANSI Rating
ANSI Leakage Class IV
Flow Characteristic
Equal Percentage, Linear
Disk Material
Polyphthalamide Resin
Seat Material
Graphite-Reinforced PTFE
For Media
Water-Glycol Solution to 50%, Water, Steam
Specific Valve Action
Stem Down to Close
Leakage Rate
1 %
Body Material
Brass
Port Types Included
Bypass, Control
Trim Material
Stainless Steel
Includes Characterizing Disk
Disk Included
Ball Material
Stainless Steel
Bypass Port Coefficient of Volume (Cv)
88
Manufacturer Series
VG1000
Gasket Material
EPDM
Operating Temperature - Maximum
284 Degrees F
Body Pattern
Three-Way

Description

HVAC Control Ball Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Not Applicable, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, ANSI Rating ANSI Leakage Class IV, Application Control of Hot/Chilled Water, Ball Material Stainless Steel, Body Material Brass, Body Pattern Three-Way, Bypass Port Coefficient of Volume (Cv) 88, Close-Off Pressure 50 psi
