Johnson Controls

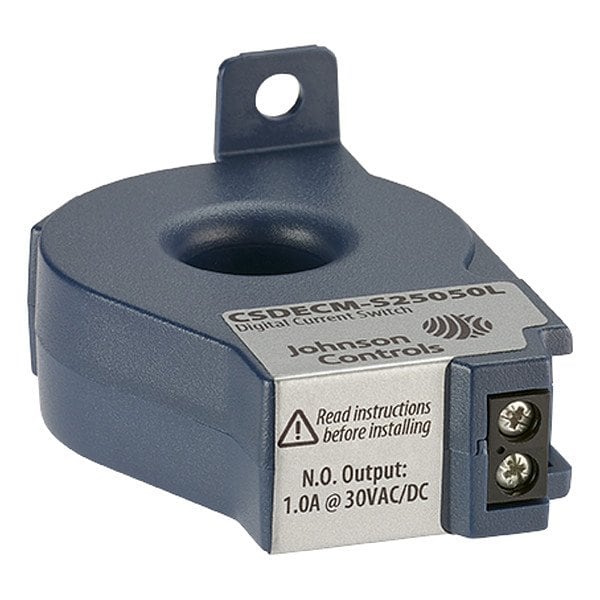

Current Sensing Relay, Solid Core, 0.50A

product price: $80.80
/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Input or Control Voltage Self Powered
  • AC Contact Rating - Relay 1.00A @ 30V
  • DC Contact Rating - Relay 1.00A @ 30V
  • Mounting - Relay Surface
  • Contact Form - Relay SPST-NO
See all product information

Product Information

Dimensions

Body Width - Relay 0.97 in
Body Depth - Relay 1.6 in
Overall Height - Relay 2.26 in
Body Height - Relay 2.26 in
Body Height 2.26 in
Body Depth 1.6 in
Body Width 0.97 in
Sensing Hole Diameter 0.51 in
Overall Depth 2.26 in

Details

Item - Relay Current Sensing Relay
Input or Control Voltage Self Powered
AC Contact Rating - Relay 1.00A @ 30V
DC Contact Rating - Relay 1.00A @ 30V
Mounting - Relay Surface
Contact Form - Relay SPST-NO
Sensing Amp Range 0.75 to 50.00A
Trip Point 0.75 to 50 A
Trip Delay None
Core Type - Relay Solid
Type of Output Solid State
Electrical Connection Terminal Strip
Contact Amps 0.50A
Status Indicator LED Indicator
Input Voltage Self Powered
Contact Form SPST-NO
Mounting Surface
Core Type Solid
Sensor Opening 0.51 in
Item Current Sensor Relay
Max. Inrush Current 50 A
Standards CE Certified, UL Listed
Frequency 50/60 Hz
Current Rating 50 A
Electrical Connection Type Pin
Socket Code Configurator Surface
Contact Rating (AC) 1 A @ 30V
Trip Point Type Adjustable
Weight 0.15 lb
Mounting Style Surface
Maximum Switching Voltage 125V AC
Minimum Operating Temperature 5 Degrees F
Adjustment Method Switch
Monitored Parameters Overcurrent, Undercurrent
Wire Gauge 14 AWG, 24 AWG
Contact Rating (DC) 1 A @ 30V
Relay Mounting Style Surface
Operating Current 50 A
Maximum Operating Temperature 140 Degrees F

Description

Current Sensor Relay, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 30V, Contact Rating (DC) 1 A @ 30V, Core Type Solid, Current Rating 50 A, Input Voltage Self Powered, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Trip Point 0.75 to 50 A, Trip Point Type Adjustable, Adjustment Method Switch, Electrical Connection Terminal Strip, Sensing Hole Diameter 0.51 in, Status Indicator LED Indicator, Wire Gauge 14 AWG, 24 AWG, Body Depth 1.6 in, Body Height 2.26 in
