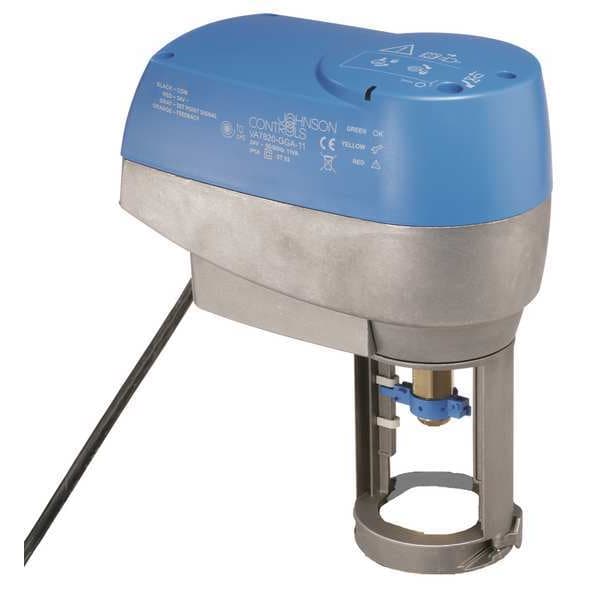

Johnson Controls Elec Act, 180 in.-lb., 24VAC VA7820-HGA-2 - main

Elec Act, 180 in.-lb., 24VAC

  • Mfr # VA7820-HGA-2

  • Zoro # G5126012

product price: $703.99
/ea
Free Shipping & Returns

Key Features

Signal Type
Proportional/On-Off/Floating
Torque
180 in-lb
Voltage
24V AC
Cycle Time
76 sec
For Use With
Globe Valves
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VA7820-HGA-2
Zoro #
G5126012
UPC #
-
Country of Origin
Germany

Dimensions

Depth
8 3/8 in
Width
4 1/2 in
Height
9 in
Overall Depth
8 3/8 in
Electrical Lead Length
4 ft
Overall Width
4 9/16 in
Stroke Length
2 in
Overall Height
9 5/8 in

Details

Signal Type
Proportional/On-Off/Floating
Torque
180 in-lb
Voltage
24V AC
Item
Electric Globe Valve Actuator
Cycle Time
76 sec
For Use With
Globe Valves
Includes
Valve Linkage
Power Consumption
11 VA
Ambient Temp. Range
To 131 Degrees F
Type of Actuator
Spring Return
Stroke Deg.
1
Electrical Connections
Cable
Product Type
Electric Globe Valve Actuator
Shaft Type
Integrated Shaft for Valve
Installation Orientation
Horizontal Preferred
Operating Temperature - Minimum
23 Degrees F
Return Action
Spring Return
NEMA Rating
2
Stroke Degree
1 Degrees
Compatible Brand
Johnson Controls
Mounting Style
Direct Mount
Includes Electrical Leads
Electrical Leads Included
Electrical Connection Type
Cable
Control Signal
Floating Point, On/Off, Proportional
Power Failure Action
Stem Up
Application
Chilled/Hot Water Control, Steam Control
Auxiliary Contact Form
SPDT
Standards
CCN XAPX File E194024, CE, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL 60730 Listed Type 1 Enclosure
Compatible Series
VG7000
Frequency
50/60 Hz
Operating Temperature - Maximum
131 Degrees F
Number of Auxiliary Switches
0

Description

Electric Globe Valve Actuator, Application Chilled/Hot Water Control, Steam Control, Auxiliary Contact Form SPDT, Compatible Brand Johnson Controls, Compatible Series VG7000, Control Signal Floating Point, On/Off, Proportional, Cycle Time 76 sec, Electrical Connection Type Cable, Electrical Lead Length 4 ft, Frequency 50/60 Hz, Includes Valve Linkage, Includes Electrical Leads Electrical Leads Included, Installation Orientation Horizontal Preferred, Mounting Style Direct Mount, NEMA Rating 2
