  9. Electric Actuator, 21.5in-lb, Direct Mount
Shop All Actuators and Damper Motors
Johnson Controls

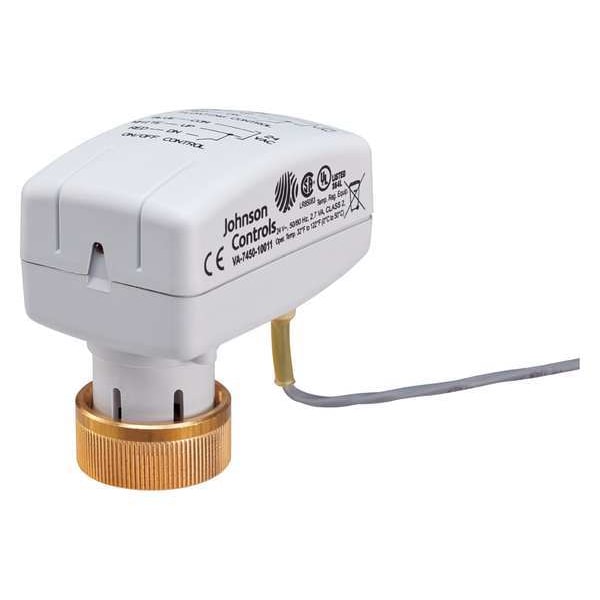

Electric Actuator, 21.5in-lb, Direct Mount

product price: $173.95
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Non-Spring Return
  • Signal Type Floating Point, On/Off
  • Torque 22 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Width 2 29/32 in
Height 2 3/4 in
Depth 1 27/32 in
Overall Height 2 3/4 in
Overall Depth 1 7/8 in
Overall Width 2 15/16 in
Stroke Length 3/16 in
Electrical Lead Length 20 in

Details

Mounting Type Direct Mount
Spring Return Non-Spring Return
Signal Type Floating Point, On/Off
Torque 22 in-lb
Voltage 24V AC
Motor Direction CW or CCW
Timing 65 sec
Power Consumption 2.7 VA
Item Electric Globe Valve Actuator
Shaft Type Integrated
Electrical Connections Cable
Stroke Deg. 90
For Use With Globe Valves
Includes Valve Linkage
Ambient Temp. Range 32 Degrees to 122 Degrees F
IP Rating IP54
NEMA Rating 2
Shaft Rotation CW/CCW
Time to Close 65 sec
Product Type Electric Globe Valve Actuator
Number of Auxiliary Switches 0
Stroke Degree 90 Degrees
For Use With Building Automation Systems Building Automation System Compatible
Electrical Connection Type Cable
Rated Torque 21.5 in-lb
Valve Application Valve
Maximum Operating Temperature 122 Degrees F
Input Voltage 24V AC
Minimum Operating Temperature 32 Degrees F
Cycle Time 65 sec
Control Signal Floating Point, On/Off
Operating Temperature - Maximum 122 Degrees F
Return Action Non-Spring Return
Compatible Series VG4200, VG5200
Operating Temperature - Minimum 32 Degrees F
Mounting Style Direct Mount

Description

Electric Globe Valve Actuator, Compatible Series VG4200, VG5200, Control Signal Floating Point, On/Off, Cycle Time 65 sec, Electrical Connection Type Cable, Electrical Lead Length 20 in, Includes Valve Linkage, Mounting Style Direct Mount, NEMA Rating 2, Number of Auxiliary Switches 0, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum 32 Degrees F, Overall Depth 1 7/8 in, Overall Height 2 3/4 in, Overall Width 2 15/16 in, Power Consumption 2.7 VA
