  9. Electric Actuator, 70 in.-lb.-40 to 140
Shop All Actuators and Damper Motors
Johnson Controls

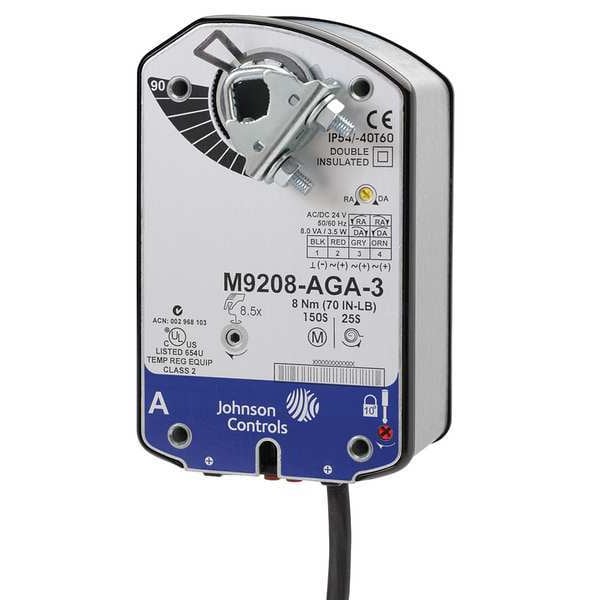

Electric Actuator, 70 in.-lb.-40 to 140

product price: $324.95
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Spring Return
  • Signal Type Proportional
  • Torque 70 in-lb
  • Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Width 3 7/8 in
Depth 2 1/4 in
Height 6 3/8 in
Overall Width 3 7/8 in
Overall Height 6 3/8 in
Overall Depth 2 1/4 in
For Shaft Diameter 5/8 in

Details

Mounting Type Direct Mount
Spring Return Spring Return
Signal Type Proportional
Torque 70 in-lb
Voltage 24V AC/DC
Ambient Temp. Range -40 Degrees to 140 Degrees F
Includes Anti-Rotation Bracket
Timing 150 sec
Item Actuator
Shaft Type Self-Centering Clamping
Motor Direction CW or CCW
Power Consumption 7.9 VA
Electrical Connections Cable
Stroke Deg. 90
For Use With Dampers and Valves
Replaces Honeywell Motors Mfr. No. MS7505A2030
Minimum Operating Temperature -40 Degrees F
IP Rating IP54
Number of Auxiliary Switches 0
Rated Torque 70 in-lb
Maximum Operating Temperature 140 Degrees F
Shaft Rotation CW/CCW
For Shaft Shape Round
Time to Close 150 sec
Stroke Degree 90 Degrees
For Use With Building Automation Systems Building Automation System Compatible
Input Voltage 24V AC/DC
Product Type Actuator
Electrical Connection Type Hardwired
NEMA Rating 2
Valve Application Damper
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 70 in-lb, Input Voltage 24V AC/DC, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 150 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F
