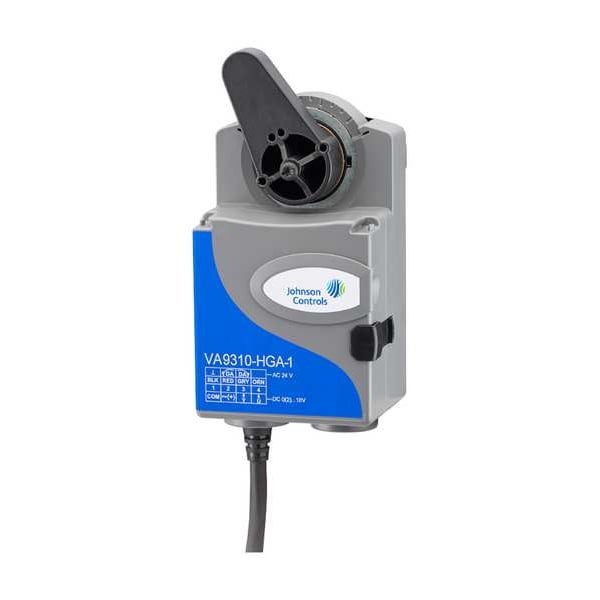

Johnson Controls Electric Actuator, Floating, -4 to 131F VA9310-HGA-1 - main

Electric Actuator, Floating, -4 to 131F

  • Mfr # VA9310-HGA-1

  • Zoro # G8987307

product price: $226.05
/ea
Free Shipping & Returns

Key Features

Mounting Type
Direct Mount
Spring Return
Non-Spring Return
Signal Type
Floating Point
Torque
88 in-lb
Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VA9310-HGA-1
Zoro #
G8987307
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
2 11/16 in
Height
6 in
Width
4 1/4 in
Overall Width
4 1/4 in
Overall Height
6 in
Overall Depth
2 11/16 in
Electrical Lead Length
120 in
Stroke Length
Not Rated

Details

Mounting Type
Direct Mount
Spring Return
Non-Spring Return
Signal Type
Floating Point
Torque
88 in-lb
Voltage
24V AC
Switch Type
2 SPDT
Timing
60 sec
Electrical Connections
Spade Terminals
Motor Direction
CW or CCW
Shaft Type
Self-Centering Clamping
Includes
Anti-Rotation Bracket
Power Consumption
3.2 VA
For Use With
Dampers and Valves
Stroke Deg.
90
Ambient Temp. Range
-4 Degrees to 131 Degrees F
Item
Electric Ball Valve Actuator
Product Type
Electric Ball Valve Actuator
Input Voltage
24V AC
NEMA Rating
4X
Shaft Rotation
CW/CCW
Valve Application
Valve
Maximum Operating Temperature
131 Degrees F
For Use With Building Automation Systems
Building Automation System Compatible
Contact Form
SPDT
Rated Torque
53 in-lb
Time to Close
60 sec
Minimum Operating Temperature
-4 Degrees F
Number of Auxiliary Switches
0
Stroke Degree
90 Degrees
Electrical Connection Type
Screw Terminals
Cycle Time
60 sec
Compatible Series
VG1000
Operating Temperature - Maximum
131 Degrees F
Auxiliary Contact Form
SPDT
Operating Temperature - Minimum
-4 Degrees F
Return Action
Non-Spring Return
Mounting Style
Direct Mount
Control Signal
Floating Point

Description

Electric Ball Valve Actuator, Auxiliary Contact Form SPDT, Compatible Series VG1000, Control Signal Floating Point, Cycle Time 60 sec, Electrical Connection Type Screw Terminals, Electrical Lead Length 120 in, Includes Anti-Rotation Bracket, Mounting Style Direct Mount, NEMA Rating 4X, Number of Auxiliary Switches 0, Operating Temperature - Maximum 131 Degrees F, Operating Temperature - Minimum -4 Degrees F, Overall Depth 2 11/16 in, Overall Height 6 in, Overall Width 4 1/4 in

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
