  9. Globe Valve, 2-Way, NC, 5 In, Flanged
This item is Discontinued.

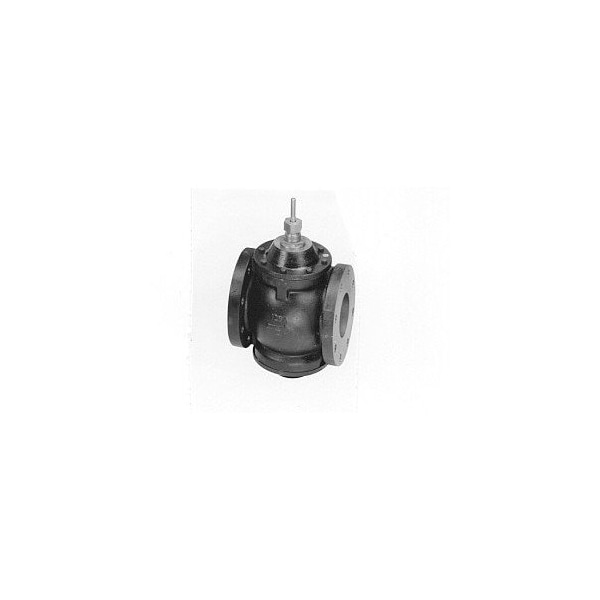

Johnson Controls Globe Valve, 2-Way, NC, 5 In, Flanged VG2431WN

Globe Valve, 2-Way, NC, 5 In, Flanged (Discontinued)

  • Mfr # VG2431WN
  • Zoro # G7202431
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VG2431WN
Zoro #
G7202431
UPC #
-
Country of Origin
Mexico

Dimensions

Connection Size
5 in
Depth
10 in
Width
12 1/2 in
Height
16 7/8 in
Overall Height
16 7/8 in
Overall Length
12 1/2 in
Overall Depth
10 in
Port Connection Size
5 in

Details

Item
Hydronic Globe Valve
Body Material
Cast Iron
Valve Design
2-Way
Configuration
Straight-Thru
Connection Type
Flanged
Max. Water Temp.
281 Degrees F
For Use With
M9000 Series Actuators and Pneumatic Actuators
Safe Working Steam Pressure
35 psi
Trim Material
Brass
Coefficient of Volume
240
Includes
Valve Only
Safe Working Water Pressure
175 psi
Standards
ANSI Class 125
Operating Temperature - Maximum
281 Degrees F
Flow Characteristic
Linear
Leakage Rate
0.1%
Stem Material
Stainless Steel
Actuator Return Action
Spring Return
Valve Action
Normally Closed
Stem Travel
1 3/8 in
Port Connection Type
Flanged
For Media
Water-Glycol Solution to 50%, Water
Seat Material
Brass
Coefficient of Volume (Cv)
240
Specific Valve Action
Stem Up to Close
Body Pattern
Two-Way
Packing Material
EPDM
Rangeability
10.7:1
Operating Temperature - Minimum
35 Degrees F
Allowable Pressure - Maximum
175 psi
Includes Actuator
Actuator Not Included
Manufacturer Series
MP86
ANSI Rating
ANSI Class 125

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Not Applicable, Actuator Input Voltage Not Applicable, Actuator Return Action Spring Return, Actuator Type Not Applicable, Allowable Pressure - Maximum 175 psi, ANSI Rating ANSI Class 125, Body Material Cast Iron, Body Pattern Two-Way, Cartridge Material Not Applicable, Coefficient of Volume (Cv) 240, Configuration Straight-Thru
