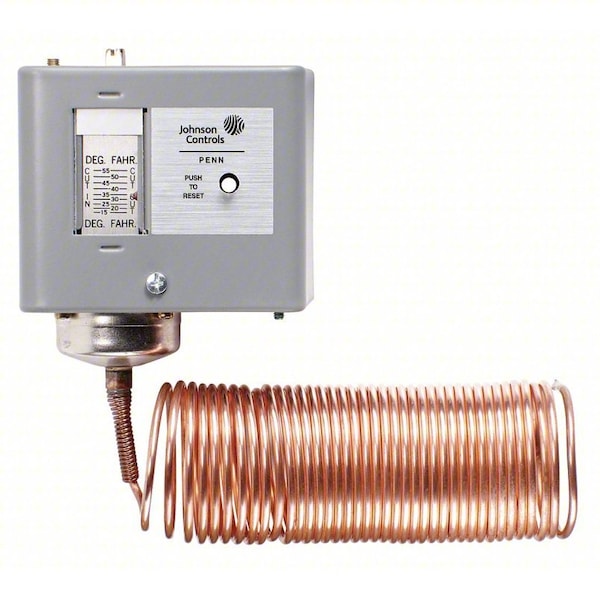

Johnson Controls Line Voltage Mechanical Thermostat, Heat or Cool, 15 to 55F, Screwdriver, 120 to 600V AC, Close on Rise A70BA-18C - main
Shop JOHNSON CONTROLS

Line Voltage Mechanical Thermostat, Heat or Cool, 15 to 55F, Screwdriver, 120 to 600V AC, Close on Rise

  • Mfr # A70BA-18C

  • Zoro # G6199462

product price:  $259.99
/ea
Free Shipping & Returns

Key Features

Application
Heat or Cool
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A70BA-18C
Zoro #
G6199462
UPC #
078502809148
Country of Origin
Mexico

Dimensions

Capillary Length
20 ft
Sensing Bulb Dia.
1/8 in
Overall Depth
2-1/8 in
Bulb Length
20 ft
Overall Width
4 in
Overall Height
3-1/4 in

Details

Application
Heat or Cool
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
15 to 55 Degrees F
Control Type
Screwdriver
Voltage
120 to 600V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Enclosure Type
Galvanized/Steel
Resistive Amps @ 208VAC
3.4 A, 9.2 A
Contact Rating Resistive @ 240V
3 A, 8 A
Includes
Remote Sensing Bulb
Standards
CSA LR948/1222 01, UL SA516
Locked Rotor Amps @ 240V
18 A, 48 A
Inductive Amps @ 120V
6 A, 16 A
Number of Switches
1
Inductive Amps @ 240V
3 A, 8 A
Inductive Amps @ 208V
3.4 A, 9.2 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Locked Rotor Amps @ 120V
36 A, 96 A
Contact Rating Resistive @ 120V
22 A
Number of Relay Inputs
2
For Use With
HVAC/R Applications
Thermostat Type
Two-Circuit Indoor Single-Stage Controls
Number of Relay Outputs
2
Temperature Sensitivity
+/-2 Degrees F
Sensor Location
Remote
Number of Poles
1
Full Load Amps @ 120V AC
6 A, 16 A
Minimum Operating Temperature
0 Degrees F
Temperature Scale
Fahrenheit
Pilot Duty Rating
125 VA
Differential Type
Fixed
Maximum Operating Temperature
170 Degrees F
Minimum Control Temperature
15 Degrees F
Maximum Control Temperature
55 Degrees F
Enclosure Color
Gray
Contact Rating
120V AC, 240V AC
Temperature Differential
5 Degrees F
Enclosure NEMA Rating
1
Full Load Amps @ 240V AC
3 A, 8 A
Programming Capability
Not Programmable
Housing Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 15 Degrees to 55 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 16A Main, 6A Aux, Full Load Amps @ 240VAC 8A Main, 3A Aux, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Cooling, Remote Sensing Bulb Included Yes, Switch Action Close On Rise, Number of Switches 1, Differential 5 Degrees F, Height 3-1/4 In., Width 4 In., Depth 2-3/32 In.
