  6. Line Voltage Mechanical Thermostat, Heat Only, 40 to 90F, Exposed Dial, 24 to 277V AC, 1H

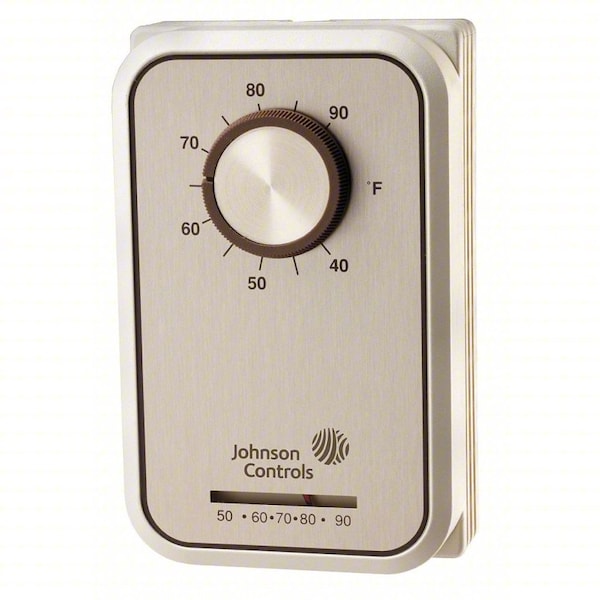

Johnson Controls Line Voltage Mechanical Thermostat, Heat Only, 40 to 90F, Exposed Dial, 24 to 277V AC, 1H T22AAA-1C - main

Line Voltage Mechanical Thermostat, Heat Only, 40 to 90F, Exposed Dial, 24 to 277V AC, 1H

  • Mfr # T22AAA-1C

  • Zoro # G6795537

product price:  $312.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T22AAA-1C
Zoro #
G6795537
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
5-13/64 in
Overall Depth
2-5/8 in
Overall Height
5-3/16 in
Overall Width
2-13/16 in

Details

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
40 to 90 Degrees F
Control Type
Exposed Dial
Voltage
24 to 277V AC
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 240V
18 A
Locked Rotor Amps @ 120V
36 A
Enclosure Type
Steel
Inductive Amps @ 120V
6 A
Inductive Amps @ 240V
3 A
Standards
UL E6688
Sensor Type
Temperature
Number of Switches
1
Agency Compliance
UL E6688
For Use With
Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications
Features
The Liquid Charged Temperature Sensing Element and Highly Efficient Diaphragm and Leverage Provide Close Temperature Control
Number of Poles
1
Electrical Connection Type
Screw Terminal
Contact Type
Snap Action
Temperature Differential
1 Degrees F
Full Load Amps @ 240V AC
3 A
Enclosure Color
Brown
Temperature Scale
Fahrenheit/Celsius
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC
Minimum Control Temperature
40 Degrees F
Housing Material
Steel
Maximum Control Temperature
90 Degrees F
Mounting Direction
Vertical
Full Load Amps @ 120V AC
6 A
Differential Type
Fixed
Pilot Duty Rating
125 VA
Programming Capability
Not Programmable
Includes
Positive Off

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 24 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 3 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included No, Switch Action Open on Rise, Number of Switches 1, Differential 1 Degrees F, Height 5 3/16 in, Width 2 25/32 in, Depth 2 19/32 in, Color Dark Brown/Light Brown
