Shop JOHNSON CONTROLS

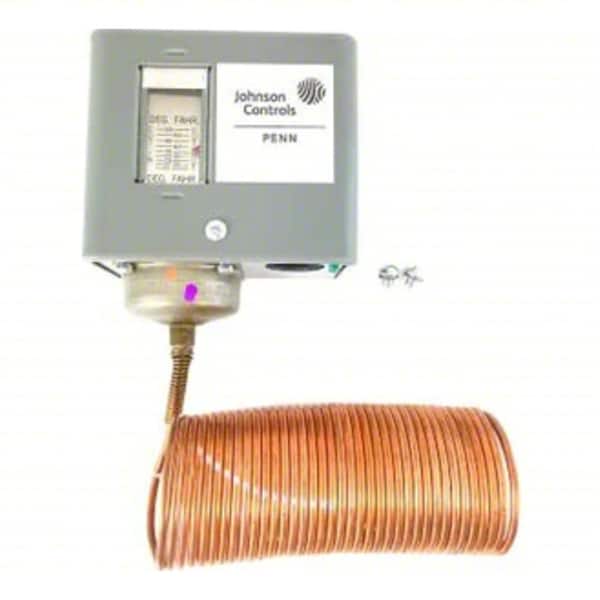

Line Voltage Mechanical Thermostat, Heat or Cool, 15-55F, Screwdriver, 120-600V AC, Open/Close on Rise

  • Mfr # A70GA-1C

  • Zoro # G5061856

product price:  $295.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A70GA-1C
Zoro #
G5061856
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
1/8 in
Capillary Length
20 ft
Overall Depth
2-1/8 in
Overall Height
3-1/4 in
Overall Width
4 in
Bulb Length
20 ft
Mounting Hole Diameter
1/4 in, 3/8 in
Capillary Length/Bulb Diameter
20 ft Capillary, 20 ft x 1/8 in Bulb
Bulb Diameter
1/8 in

Details

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
15 to 55 Degrees F
Control Type
Screwdriver
Voltage
120 to 600V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 120V
36 A, 96 A
Locked Rotor Amps @ 240V
18 A, 48 A
Contact Rating Resistive @ 240V
6 A, 8 A
Resistive Amps @ 208VAC
6 A, 9.2 A
Inductive Amps @ 240V
3 A, 8 A
Number of Switches
2
Sensor Type
Hydraulic Capillary Bulb (Copper)
Standards
CSA LR948/1222 01, UL SA516
Inductive Amps @ 120V
6 A, 16 A
Contact Rating Resistive @ 120V
6 A, 16 A
Includes
Remote Sensing Bulb
Enclosure Type
Galvanized/Steel
Inductive Amps @ 208V
3.4 A, 9.2 A
Thermostat Type
Two-Circuit Indoor Single-Stage Controls
Number of Relay Outputs
2
For Use With
Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing
Number of Relay Inputs
2
Contact Rating Resistive @ 277V
6 A, 7.2 A
Stages
1H/1C
Minimum Control Temperature
15 Degrees F
Temperature Differential
5 Degrees F
Number of Poles
1
Sensor Location
Remote
Enclosure Finish
Baked Enamel
Changeover Type
Manual
Minimum Operating Temperature
0 Degrees F
Temperature Sensitivity
+/-1 Degrees F
Differential Type
Fixed
Maximum Operating Temperature
170 Degrees F
Temperature Scale
Fahrenheit/Celsius
Pilot Duty Rating
125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC
Maximum Control Temperature
55 Degrees F
Enclosure NEMA Rating
1
Full Load Amps @ 120V AC
6 A, 16 A
Enclosure Color
Gray
Electrical Connection Type
Hardwired
Contact Type
Snap Action
Full Load Amps @ 240V AC
3 A, 8 A
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC
Programming Capability
Not Programmable
Housing Material
Steel
Resistive Amps @ 208V AC
6 A, 9.2 A
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 15 Degrees to 55 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 16A Main, 6A Aux, Full Load Amps @ 240VAC 8A Main, 3A Aux, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 5 Degrees F, Height 3-1/4 In., Width 4 In., Depth 2-3/32 In.

Restrictions

Hazardous material
