Shop JOHNSON CONTROLS

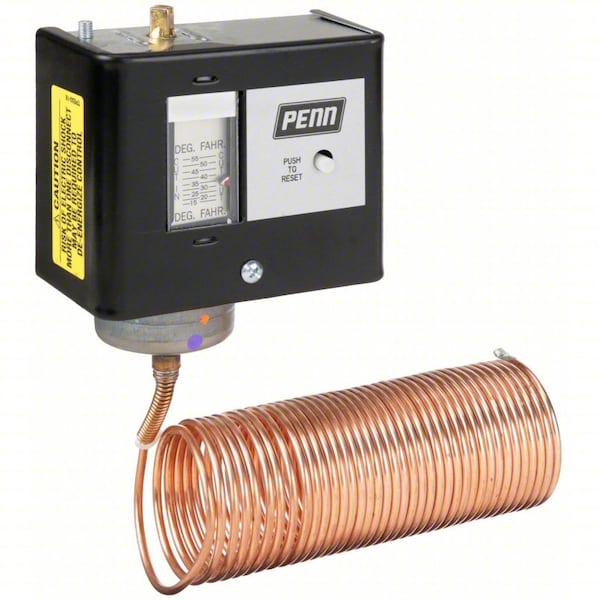

Line Voltage Mechanical Thermostat, Heat or Cool, 15 to 55 F, Screwdriver, 120 to 600V AC, 1C, 1H

  • Mfr # A70HA-1C
  • Zoro # G5061865
product price:
$
312.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A70HA-1C
Zoro #
G5061865
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
1/8 in
Capillary Length
20 ft
Capillary Length/Bulb Diameter
20 ft Capillary, 20 ft x 1/8 in Bulb
Overall Depth
2-1/8 in
Bulb Length
20 ft
Overall Width
4 in
Overall Height
3-1/4 in
Mounting Hole Diameter
1/4 in, 3/8 in
Bulb Diameter
1/8 in
Fits Chest Size
Manual Reset

Details

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
15 to 55 Degrees F
Control Type
Screwdriver
Voltage
120 to 600V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 240V
18 A, 48 A
Standards
CSA LR948/1222 01, UL SA516
Enclosure Type
Galvanized/Steel
Sensor Type
Hydraulic Capillary Bulb (Copper)
Contact Rating Resistive @ 240V
6 A, 8 A
Includes
Remote Sensing Bulb
Inductive Amps @ 120V
6 A, 16 A
Inductive Amps @ 208V
3.4 A, 9.2 A
Resistive Amps @ 208VAC
6 A, 9.2 A
Inductive Amps @ 240V
3 A, 8 A
Contact Rating Resistive @ 120V
6 A, 16 A
Number of Switches
2
Locked Rotor Amps @ 120V
36 A, 96 A
Number of Relay Inputs
2
Contact Rating Resistive @ 277V
6 A, 7.2 A
Thermostat Type
Two-Circuit Indoor Single-Stage Controls
For Use With
Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing
Number of Relay Outputs
2
Features
Manual Reset
Enclosure Finish
Baked Enamel
Enclosure NEMA Rating
1
Contact Type
Snap Action
Minimum Control Temperature
15 Degrees F
Differential Type
Manual Reset
Full Load Amps @ 120V AC
6 A, 16 A
Temperature Sensitivity
+/-2 Degrees F
Maximum Control Temperature
55 Degrees F
Minimum Operating Temperature
0 Degrees F
Temperature Scale
Fahrenheit/Celsius
Pilot Duty Rating
125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC
Sensor Location
Remote
Changeover Type
Manual
Temperature Differential
5 Degrees F
Enclosure Color
Gray
Stages
1H/1C
Full Load Amps @ 240V AC
3 A, 8 A
Electrical Connection Type
Hardwired
Number of Poles
1
Maximum Operating Temperature
170 Degrees F
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel
Resistive Amps @ 208V AC
6 A, 9.2 A
Compatible Product Type
Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 15 Degrees to 55 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 16A Main, 6A Aux, Full Load Amps @ 240VAC 8A Main, 3A Aux, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 5 Degrees F, Height 3-1/4 In., Width 4 In., Depth 2-3/32 In.

Restrictions

Hazardous material
