Shop JOHNSON CONTROLS

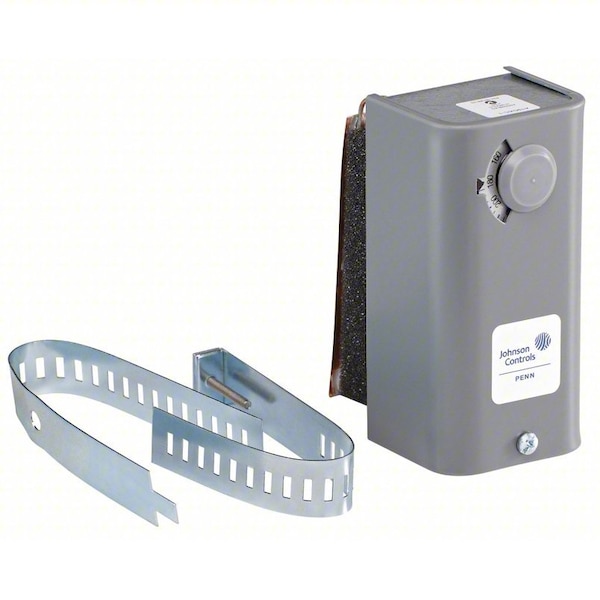

Line Voltage Mechanical Thermostat, Heat or Cool, 200 to 240F, Knob, Screwdriver, 24 to 277V AC

  • Mfr # A19DAF-2C

  • Zoro # G6074004

product price:
$
126.99
/ea
Free Shipping & Returns

Key Features

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Temperature Control Range
200 to 240 Degrees F
Control Type
Knob, Screwdriver
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A19DAF-2C
Zoro #
G6074004
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
3/8 in
Sensor Diameter
3/8 in
Overall Width
2-3/16 in
Overall Height
4-7/16 in
Overall Depth
1-13/16 in

Details

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Temperature Control Range
200 to 240 Degrees F
Control Type
Knob, Screwdriver
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Sensor Type
Copper Bulb
Inductive Amps @ 120V
6 A
Includes
Adjustable Mounting Straps
Locked Rotor Amps @ 120V
36 A
Number of Switches
1
Contact Rating Resistive @ 240V
3.4 A
Standards
C-tick, CSA LR948/4813 02, UL E6688
Contact Rating Resistive @ 120V
6 A
Enclosure Type
Single Gang Box
Inductive Amps @ 240V
3.4 A
Locked Rotor Amps @ 240V
20.4 A
Thermostat Type
Line Voltage
Sensor Location
Remote
Pilot Duty Rating
125 A @ 24 to 277V AC
Full Load Amps @ 120V AC
6 A
Mounting Direction
Horizontal, Vertical
Contact Type
Snap Action
Temperature Differential
3.5 Degrees F
Contact Rating
120V AC, 240V AC
Minimum Control Temperature
200 Degrees F
Electrical Connection Type
Hardwired
Differential Type
Adjustable
Number of Poles
1
Temperature Sensitivity
+/-2 Degrees F
Enclosure Color
Gray
Maximum Operating Temperature
140 Degrees F
Full Load Amps @ 240V AC
3.4 A
Maximum Control Temperature
240 Degrees F
Enclosure NEMA Rating
NEMA 1
Enclosure Finish
Baked Enamel
Temperature Scale
Fahrenheit
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 200 Degrees to 240 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 3.4A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included No, Switch Action Close Differential, Number of Switches 1, Differential 3.5 Degrees F, Height 4-13/32 In.
