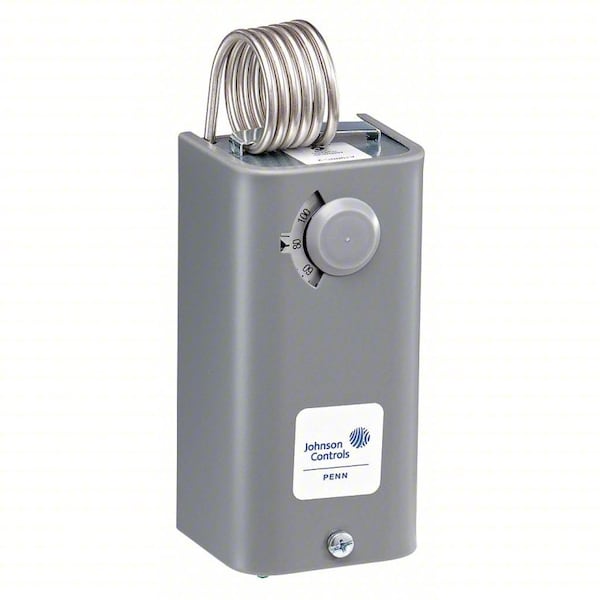

Johnson Controls Line Voltage Mechanical Thermostat, Heat or Cool, 30 to 110F, 24 to 277V AC, 2C, 2H A28AA-4C - main

Line Voltage Mechanical Thermostat, Heat or Cool, 30 to 110F, 24 to 277V AC, 2C, 2H

  • Mfr # A28AA-4C

  • Zoro # G5063195

product price:  $301.99
/ea
Free Shipping & Returns

Key Features

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
(2) SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A28AA-4C
Zoro #
G5063195
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
2 1/4 in
Overall Height
4-3/8 in
Overall Width
2-1/8 in
Overall Depth
1-13/16 in

Details

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
(2) SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
Temperature Control Range
30 to 110 Degrees F
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 240V
48 A
Inductive Amps @ 208V
9.2 A
Resistive Amps @ 208VAC
22 A
Inductive Amps @ 120V
16 A
Enclosure Type
Compact Enclosure
Contact Rating Resistive @ 240V
8 A
Locked Rotor Amps @ 120V
96 A
Standards
CSA LR948/400-E-0, UL E6688
Contact Rating Resistive @ 120V
16 A
Includes
5/8 in Mounting Clip
Number of Switches
2
Contact Rating Resistive @ 277V
7.2 A
Inductive Amps @ 240V
8 A
Sensor Type
Hydraulic Air Coil
Number of Relay Inputs
2
Number of Relay Outputs
2
Maximum Operating Temperature
110 Degrees F
Contact Type
Snap Action
Enclosure Color
Gray
Temperature Scale
Fahrenheit
Enclosure Finish
Galvanized
Pilot Duty Rating
125 VA @ 24 to 277V AC
Minimum Control Temperature
30 Degrees F
Number of Poles
1
Full Load Amps @ 240V AC
8 A
Enclosure NEMA Rating
1
Minimum Operating Temperature
30 Degrees F
Full Load Amps @ 120V AC
16 A
Temperature Differential
3.5 Degrees F
Maximum Control Temperature
110 Degrees F
Temperature Sensitivity
+/-2 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 30 Degrees to 110 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 2, Differential 3.5 Degrees F, Height 4-3/8 In., Width 2-1/8 In., Depth 1-13/16 In.
