- MFR #
- A70GA-2C
- Zoro #
- G8628471
- UPC #
- -
- Country of Origin
- Mexico
- Compatible System Type
- Heating Element, Refrigeration
- Application
- Heat or Cool
- Switch Action
- Open/Close on Rise
- Switch Type
- DPST
- Number of Cooling Stages
- 1
- Number of Heating Stages
- 1
- Temperature Control Range
- 35 to 80 Degrees F
- Control Type
- Screwdriver
- Voltage
- 120 to 600V AC
- Mounting
- Flat Surface
- Item

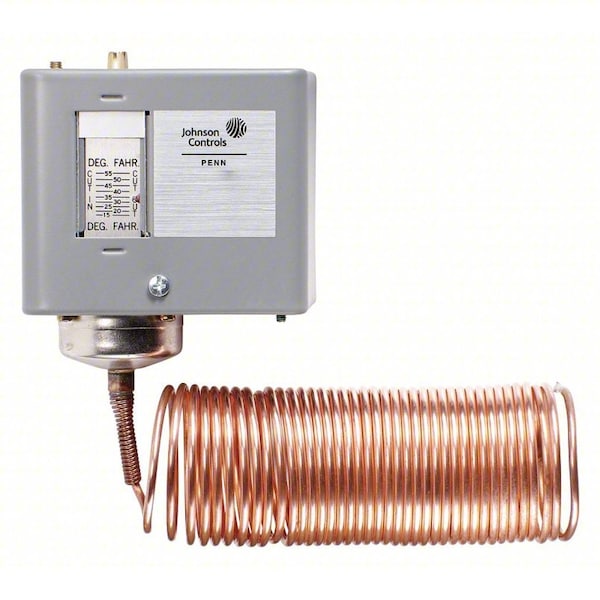

- Line Voltage Mechanical Thermostat
- Locked Rotor Amps @ 240V
- 18 A, 48 A
- Locked Rotor Amps @ 120V
- 36 A, 96 A
- Contact Rating Resistive @ 240V
- 6 A, 8 A
- Includes
- Remote Sensing Bulb
- Contact Rating Resistive @ 120V
- 6 A, 16 A
- Enclosure Type
- Galvanized/Steel
- Inductive Amps @ 240V
- 3 A, 8 A
- Standards
- CSA LR948/1222 01, UL SA516
- Number of Switches
- 2
- Sensor Type
- Hydraulic Capillary Bulb (Copper)
- Inductive Amps @ 120V
- 6 A, 16 A
- Resistive Amps @ 208VAC
- 6 A, 9.2 A
- Inductive Amps @ 208V
- 3.4 A, 9.2 A
- For Use With
- HVAC/R Applications
- Contact Rating Resistive @ 277V
- 6 A, 7.2 A
- Number of Relay Outputs
- 2
- Number of Relay Inputs
- 2
- Thermostat Type
- Two-Circuit Indoor Single-Stage Controls
- Differential Type
- Adjustable
- Pilot Duty Rating
- 125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC
- Minimum Operating Temperature
- 0 Degrees F
- Temperature Differential
- 3 to 30 Degrees F
- Temperature Sensitivity
- +/-2 Degrees F
- Minimum Control Temperature
- 35 Degrees F
- Maximum Control Temperature
- 80 Degrees F
- Contact Rating
- 120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC
- Maximum Operating Temperature
- 170 Degrees F
- Number of Poles
- 1
- Enclosure Finish
- Baked Enamel
- Enclosure NEMA Rating
- 1
- Electrical Connection Type
- Hardwired
- Full Load Amps @ 240V AC
- 3 A, 8 A
- Full Load Amps @ 120V AC
- 6 A, 16 A
- Changeover Type
- Automatic
- Sensor Location
- Remote
- Contact Type
- Snap Action
- Temperature Scale
- Fahrenheit/Celsius
- Enclosure Color
- Gray
- Stages
- 1H/1C
- Housing Material
- Steel
- Programming Capability
- Not Programmable
- Resistive Amps @ 208V AC
- 6 A, 9.2 A
- Enclosure Material
- Steel
