Shop JOHNSON CONTROLS

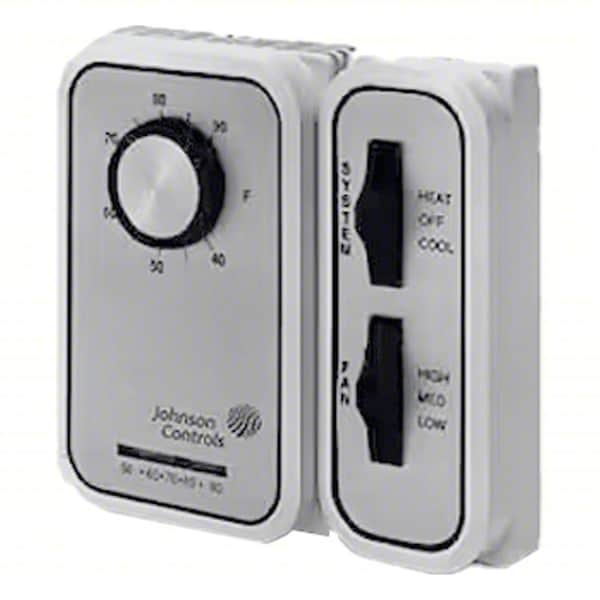

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 90F, Exposed Dial, 24 to 277V AC, 1C/1H, Manual

  • Mfr # T46SAA-1C

  • Zoro # G4744476

product price:
$
238.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Fan Coil Unit
Display Type
Analog
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T46SAA-1C
Zoro #
G4744476
UPC #
078502837332
Country of Origin
Mexico

Dimensions

Overall Width
3 in
Overall Height
5 in
Overall Depth
3 in
Digit Size
Easy Read

Details

Compatible System Type
Fan Coil Unit
Display Type
Analog
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
40 to 90 Degrees F
Control Type
Exposed Dial
Voltage
24 to 277V AC
Mounting
wall
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 240V
18 A
Inductive Amps @ 120V
6.5 A
Locked Rotor Amps @ 120V
36 A
Sensor Type
Bi-Metal
Enclosure Type
NEMA 1
Inductive Amps @ 208V
6.5 A
Inductive Amps @ 240V
6.5 A
Number of Switches
2
Number of Relay Inputs
1
Thermostat Type
Line Voltage Mechanical
Number of Relay Outputs
1
Humidification Control
No
Dual Transformer Compatible
No
Dehumidification Control
No
Temperature Limiting
Yes
Contact Rating
24 to 277V AC
Temperature Differential
0.7 Degrees F
Temperature Readout
No
Maximum Control Temperature
90 Degrees F
System Settings
Cool-Heat-Off
Temperature Scale
Fahrenheit/Celsius
Enclosure NEMA Rating
NEMA 1
Changeover Type
Manual
Electrical Connection Type
Hardwired
Fan Settings
Hi-Med-Low
Shape
Rectangle
Housing Material
Plastic
Differential Type
Fixed
Pilot Duty Rating
24 to 277V AC
Mounting Direction
Horizontal, Vertical
Number of Pipes
1
Full Load Amps @ 240V AC
6 A
Minimum Control Temperature
40 Degrees F
Includes Positive Off
Yes
Number of Poles
1
Programming Capability
Not Programmable
Full Load Amps @ 120V AC
12 A
Full Load Amps @ 277V AC
5.2 A
Temperature settings per day
Manual Adjust
Application/Stages
Heat and Cool, 1H/1C
Stages
1H/1C
Enclosure Color
Brown
Lead Gauge
16 ga
Includes
Positive Off
Lead Wire Gauge
16 ga
Housing Color
Brown
System/Fan Settings
Cool-Heat-Off, Hi-Med-Low
Operating Temperature Range
40 Degrees to 90 Degrees F
Mounting Direction/Shape
Horizontal, Vertical

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Switch Action Open/Close on Rise, Number of Switches 2, Thermostat Control Range 40 Degrees to 90 Degrees F, Differential (Deg. F) .7, Thermostat Heating/Cooling Heating/Cooling, Fan Switching Hi-Med-Low, System Switching Heat-Cool-Off, Sensor Type Bi-Metal, 5, 3, 3, Color Brown, Enclosure Type NEMA 1, Voltage 24 to 277V AC, 15 A, 3 A, 36 A, 18 A, Number of Stages 1
