Johnson Controls

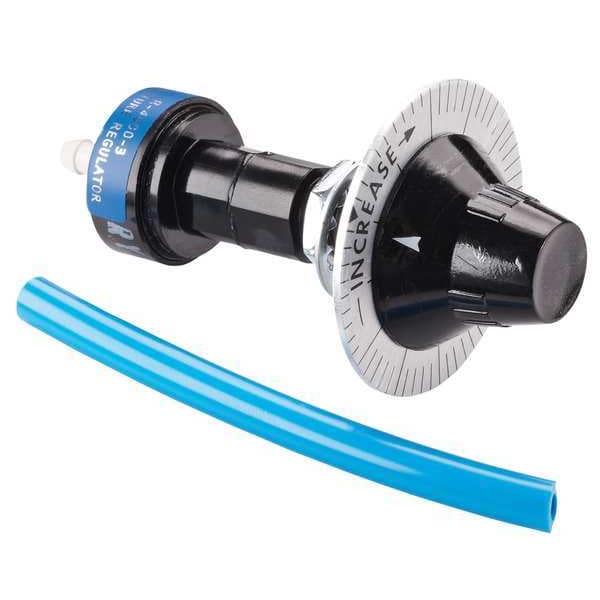

Miniature Pressure Regulator

product price: $259.51
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Preset Setting (PSI) 12
  • (M)NPT Inlet (In.) 1/4
  • Spring Material Stainless Steel
  • Max. Temp. (F) 120
  • Pressure Range (PSI) 0 to 12
See all product information

Product Information

Dimensions

Overall Height - Regulators 3.06 in
Overall Width - Regulators 1.65 in
Pipe Size - Regulators 1/4 in
Air Outlet Size 1/4 in
Overall Depth 3 1/16 in
Overall Height 3 1/16 in
Air Inlet Size 1/4 in
Overall Width 1 5/8 in

Details

Item Compressed Air Regulator
Preset Setting (PSI) 12
(M)NPT Inlet (In.) 1/4
Spring Material Stainless Steel
Max. Temp. (F) 120
Pressure Range (PSI) 0 to 12
Seal Material Rubber
Body Material Polysulfone Plastic
Max. Inlet Pressure - Regulators 25 psi
Adjustment Range - Regulators 0 to 12 psi
Max. Temp. - Regulators 120 Degrees F
(F)NPT Outlet (In.) 1/4
Air Inlet Type NPT
Pressure Gauge Included No
Minimum Operating Temperature 40 Degrees F
For Fluid Type Air
Air Outlet Gender Female
Air Outlet Type NPT
Maximum Operating Pressure 25 psi
System Location Air Line
Adjustment Mechanism Knob
Adjustment Location Side
Maximum Operating Temperature 120 Degrees F
Air Inlet Gender Female
For Substance Type Air
Adjustment Mechanism Material Brass
Series R-4000

Description

Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Operating Pressure 25 psi, Maximum Operating Temperature 120 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 1 5/8 in, Adjustment Location Side, System Location Air Line, Series R-4000, Adjustment Mechanism Material Brass, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Polysulfone Plastic, For Fluid Type Air
