Shop JOHNSON CONTROLS

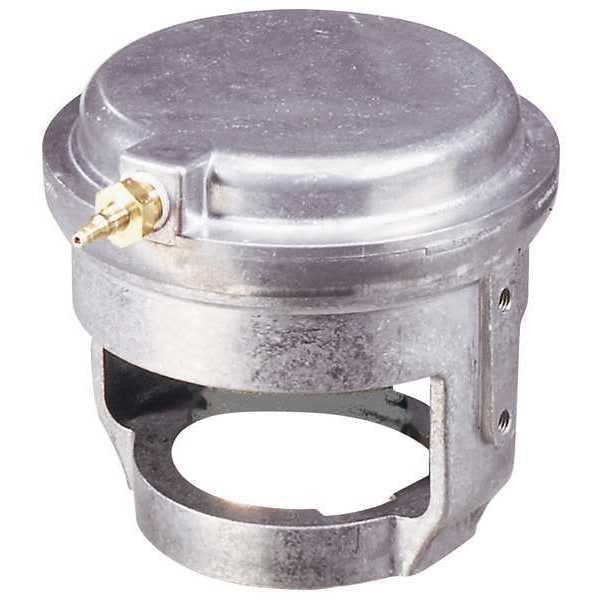

Pneumatic Valve Actuator, 3 to 13 Spring

  • Mfr # V-3000-8012
  • Zoro # G5078911
product price:
$
127.99
/ea
Free Shipping & Returns

Key Features

Operating PSI Range
0 to 25
Max. Air Pressure
25 psi
Stroke
3/4 in
Nominal Spring Range
3 to 13 psi
For Use With
Mfr. No. VG7000 Globe Valves
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V-3000-8012
Zoro #
G5078911
UPC #
-
Country of Origin
Mexico

Dimensions

Length
3 7/16 in
Height
3 11/16 in
Width
4 13/32 in
Overall Length
3 7/16 in
Overall Width
4 13/32 in
Overall Depth
3 11/16 in
Air Connection Size
1/8 in
Wire Rope Length
3 7/16 in

Details

Item
Pneumatic Valve Actuator
Operating PSI Range
0 to 25
Max. Air Pressure
25 psi
Stroke
3/4 in
Nominal Spring Range
3 to 13 psi
For Use With
Mfr. No. VG7000 Globe Valves
Application
Control of Hot/Chilled Water
Operating Temperature - Minimum
-20 Degrees F
Housing Material
Die Cast Aluminum
Effective Diaphragm Area
8 sq in
Diaphragm Material
Synthetic Rubber
Specific Valve Action
Spring Return Up
Includes Positioner
Positioner Included
Air Connection Type
Barbed Hose
Return Action
Spring Return
Control Pressure - Maximum
25 psi
Spring Range Maximum
13 psi
Operating Temperature - Maximum
150 Degrees F
Includes Mounting Kit
Valve Mounting Kit Not Included
Manufacturer Series
V-3000
Spring Range Minimum
3 psi

Description

Pneumatic Valve Actuator, Air Connection Size 1/8 in, Air Connection Type Barbed Hose, Application Control of Hot/Chilled Water, Control Pressure - Maximum 25 psi, Diaphragm Material Synthetic Rubber, Effective Diaphragm Area 8 sq in, Housing Material Die Cast Aluminum, Includes Mounting Kit Valve Mounting Kit Not Included, Includes Positioner Positioner Included, Manufacturer Series V-3000, Operating Temperature - Maximum 150 Degrees F, Operating Temperature - Minimum -20 Degrees F
