  9. Pressure Trans 0500 Psig, 010 Vdc Output

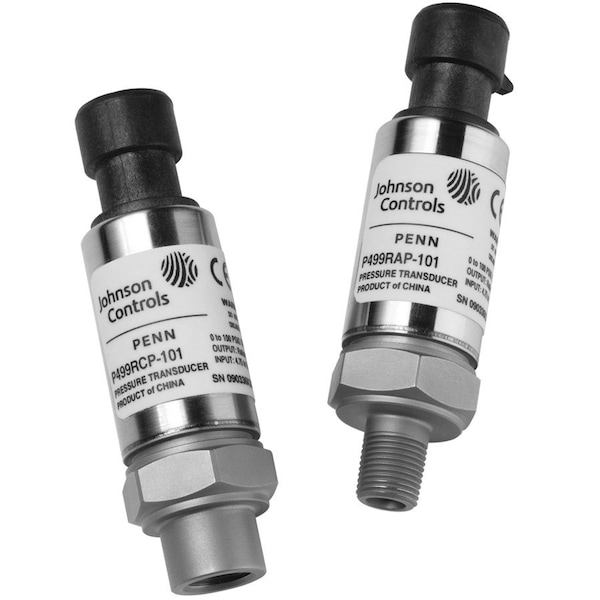

Johnson Controls Pressure Trans 0500 Psig, 010 Vdc Output P499VCP-105C - main

Pressure Trans 0500 Psig, 010 Vdc Output

  • Mfr # P499VCP-105C

  • Zoro # G3269336

product price: $179.99
/ea
Free Shipping & Returns

Key Features

Series
P499
Output
0 to 10V DC
Accuracy
+/-1% of Full Span
Electrical Connections
3-Pin Packard Connector
Features
Direct-Mount Pressure Transducers
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P499VCP-105C
Zoro #
G3269336
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Overall Width
0.875 in
Cable Length
6.5 ft
Process Connection Size
1/4 in
Overall Length
3.187 in

Details

Item
Pressure Transmitter
Series
P499
Output
0 to 10V DC
Accuracy
+/-1% of Full Span
Electrical Connections
3-Pin Packard Connector
Features
Direct-Mount Pressure Transducers
Power Required
12 to 30V DC
Safety Rating
Class 1 Div. 2
Wiring Entry - Transmitter
1/2 in FNPT
Transmitter Type
Pressure Transmitter
IP Rating
IP67
Pressure Units
psig
Intrinsically Safe
No
Standards
File E322274, UL Listed, File E29374, CCN NKPZ, UL Recognized for Use in Class I, Division 2 Hazardous Locations
For Use With Media Type
Ammonia, Carbon Dioxide, Compatible Fluids And Gases, Condensate, Glycol, Refrigerants, Water
Housing Material
Stainless Steel
Explosion/Fire Proof
No
Maximum Pressure
500 psi
Burst Pressure
5x Range
Minimum Pressure
0 psi
Process Connection Gender
Male
Number of Wires
2
Overpressure
2x Range
Process Connection Type
UNF
Fitting Material
17-4PH Stainless Steel
Storage Temperature Range
-40 Degrees F to 257 Degrees F
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
185 Degrees F
Wiring Entry
1/2 in FNPT Conduit Connection
Electrical Connection
3-Pin Packard Connector
Output Power
0 to 10V DC
Process Media Temperature - Maximum
185 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Pressure Measurement - Maximum
500 psi
Input Voltage
12 to 30V DC
Pressure Measurement - Minimum
0 psi
Intrinsic Safety
Not Specified Intrinsically Safe

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 500 psi, Electrical Connections 3-Pin Packard Connector, Output 0 to 10V DC, Accuracy +/-1 Percent of Full Span, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Power Required 12 to 30V DC, IP Rating IP67, Series P499, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel
