Shop JOHNSON CONTROLS

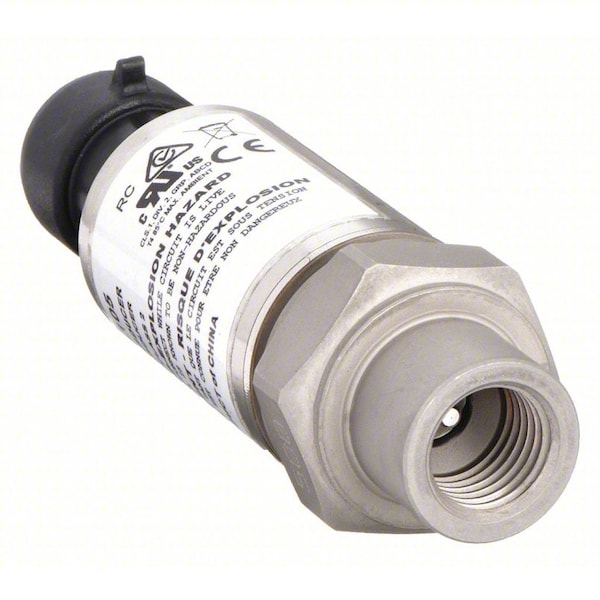

Pressure Transmitter, 500 psi

  • Mfr # P499ACP-105K

  • Zoro # G003789701

product price:
$
187.32
/ea
Free Shipping & Returns

Key Features

Includes
6 1/2 Ft (2 m) Wire Harness, Transducer
Series
P499
Output
4 to 20mA DC
Operating Temp.
-40 Degrees to 185 Degrees F
Storage Temperature Range
-40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P499ACP-105K
Zoro #
G003789701
UPC #
662011099253
Country of Origin
China

Dimensions

Overall Width
0.875 in
Process Connection Size
1/4 in
Process Connection Size - Transmitter
1/4 in
Manufacturers Warranty Length
3 yr
Lead Length (In.)
78.74
Cable Length
6.5 ft
Overall Length
3.19 in
Wire Rope Length
3.19 in
Length
3.19 in

Details

Item
Pressure Transmitter
Includes
6 1/2 Ft (2 m) Wire Harness, Transducer
Series
P499
Output
4 to 20mA DC
Operating Temp.
-40 Degrees to 185 Degrees F
Storage Temperature Range
-40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C)
For Use With Media Type
Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water
Accuracy
+/-1% of Full Scale
Burst Pressure
5x Range
Housing Material
Stainless Steel
Process Connection
1/4 in Male SAE 45 Degrees Flare
Minimum Pressure
0 psi
Electrical Connection
3-Pin Packard Connector
Maximum Pressure
500 psi
Fitting Material
Stainless Steel
Intrinsically Safe
No
Output - Transmitter
4 to 20mA DC
Maximum Loop Resistance
100 Mega Ohm @ 500V DC
Operating Temp. - Transmitter
-40 Degrees to 185 Degrees F
Max. Pressure (PSI)
1,000 psi
Process Connection Type
SAE 45 Degrees Flare
Transmitter Type
Pressure Transmitter
Safety Rating
Class I Div. 2
Wiring Entry - Transmitter
None
Minimum Operating Temperature
-40 Degrees F
Process Connection Gender
Male
Number of Wires
3
Maximum Operating Temperature
185 Degrees F
Pressure Units
psig/bar
Process Connection Type - Transmitter
SAE Flare Internal Thread
Explosion/Fire Proof
No
Features
1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port
Power Required
9 to 30V DC
For Use With
Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 17-4PH Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, and Many Other Compatible Fluids and Gases
NEMA Rating
7 - Class 1, Division 2, Groups A, B, C, and D
Wetted Materials
17-4PH Stainless Steel Construction
Range
0 to 500 psig
Loop Resistance
Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
Safety Rating - Transmitter
Class I, Div. 2, Groups A, B, C, D
Standards
UL Listed
Electrical Connections - Transmitter
Packard Connector with 6-1/2 ft Wiring Harness
Wetted Materials - Transmitters
17-4PH Stainless Steel
Range Units - Transmitter
psig
Electrical Connections
3-Pin Packard Connector
Overpressure
2x Range
Range Values - Transmitter
0 to 500
Accuracy - Transmitter
+/-1.00% Full Scale
Compatible With
All Media Compatible with 17-4PH Stainless Steel, Including Ammonia
Power Required - Transmitters
12 to 30V DC
Housing
17-4PH Stainless Steel Construction
Input Voltage
9 to 30V DC
Process Media Temperature - Maximum
185 Degrees F
Pressure Type Measured
Gauge
Loop Resistance - Maximum
100 Mega Ohm @ 500V DC
Pressure Measurement - Minimum
0 psi
Intrinsic Safety
Not Specified Intrinsically Safe
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP67
Output Power
4 to 20mA DC
Pressure Measurement - Maximum
500 psi

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 500 psi, Electrical Connections 3-Pin Packard Connector, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type SAE 45 Degrees Flare, Power Required 9 to 30V DC, IP Rating IP67, Series P499, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel
