Johnson Controls

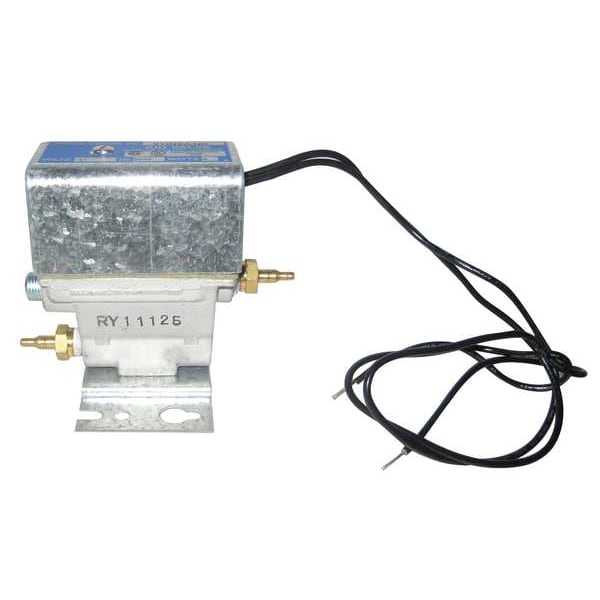

Solenoid Air Valve, 120VAC, 0-25 psi

product price: $338.22
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Air Connections 1/4 in Barb
  • Width 2 1/2 in
  • Normally Open / Normally Closed Normally Open/Normally Closed
  • Depth 1 1/2 in
See all product information

Product Information

Dimensions

Width 2 1/2 in
Depth 1 1/2 in
Height 3 1/4 in
Overall Length 3 7/16 in
Overall Width 2 1/2 in
Normally Open Port Connection Size 1/8 in
Common Port Connection Size 1/4 in
Overall Depth 1 1/2 in
Electrical Lead Length 18 in
Normally Closed Port Connection Size 1/4 in

Details

Item Solenoid Air Valve
Voltage 120V AC
Air Connections 1/4 in Barb
Normally Open / Normally Closed Normally Open/Normally Closed
Control Air Pressure 0 to 25 psi
Temp. Control Range 32 Degrees to 104 Degrees F
Agency Compliance UL
Max. Air Pressure 30 psi
Air Consumption 1.5 cfm
Standards cUL, CE Listed, UL Listed
Power Consumption 6 W
Electrical Connections Soldered
Body Material Die Cast Aluminum
Common Port Connection Gender Male
Application Smoke Dampers
Normally Closed Port Connection Type Barbed Hose
Normally Open Port Connection Type NPT
Operating Temperature - Minimum 32 Degrees F
Cover Material Steel
Body Pattern Three-Way
Port Types Included Common, Normally Closed, Normally Open
Installation Orientation Versatile
Common Port Connection Type Barbed Hose
For Media Air
Operating Pressure - Maximum 30 psi
Normally Open Port Connection Gender Female
Enclosure Type Junction Box
Number of Port Connections 3
Valve Action Normally Closed, Normally Open
Normally Closed Port Connection Gender Male
Control Action Direct Acting/Reverse Acting
Operating Temperature - Maximum 140 Degrees F
Frequency 50/60 Hz

Description

Solenoid Air Valve, Air Consumption 1.5 cfm, Application Smoke Dampers, Body Material Die Cast Aluminum, Body Pattern Three-Way, Common Port Connection Gender Male, Common Port Connection Size 1/4 in, Common Port Connection Type Barbed Hose, Control Action Direct Acting/Reverse Acting, Cover Material Steel, Electrical Connections Soldered, Electrical Lead Length 18 in, Enclosure Type Junction Box, For Media Air, Frequency 50/60 Hz, Installation Orientation Versatile
