Shop JOHNSON CONTROLS

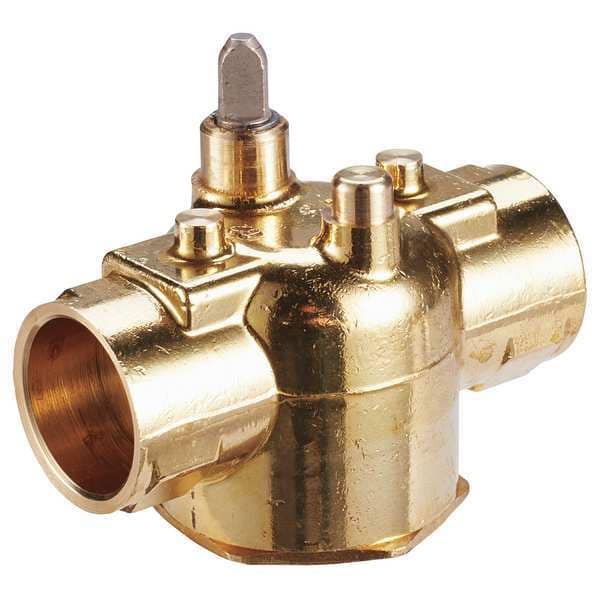

Valve, 2 Way, High Temp, On/Off, Sweat 1/2

  • Mfr # JS2211

  • Zoro # G6463414

product price:  $58.19
/ea

Key Features

Type
2 Way, High Temp, On/Off
For Use With
J Series Actuators
Height (In.)
1 7/8 in
Standard Pressure Closeoff
60
Depth (In.)
1 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JS2211
Zoro #
G6463414
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
1 7/8 in
Depth (In.)
1 3/4 in
Connection Type/Size (In.)
Sweat 1/2
Width (In.)
2 5/8 in
Port Connection Size
1/2 in
Overall Width
1 7/8 in
Overall Length
2 5/8 in
Overall Depth
1 3/4 in
Wire Rope Length
2 5/8 in

Details

Item
Hydronic Globe Valve
Type
2 Way, High Temp, On/Off
For Use With
J Series Actuators
Standard Pressure Closeoff
60
Includes
Valve Only
Safe Working Steam PSI
15 psi
High Pressure Closeoff
75
Max. Water Temp. (Deg. F)
250 Degrees F
Description/Special Features
Valve, 2 Way, High Temp, On/Off, Sweat 1/2
Coefficient of Volume
1
Safe Working Water PSI
300 psi
Stem Material
Brass
Includes Actuator
Actuator Not Included
Installation Orientation
Horizontal
Body Material
Brass
Operating Temperature - Minimum
32 Degrees F
Coefficient of Volume (Cv)
1
Actuator Control Signal
On/Off
Application
Chilled/Hot Water Control, Fan Coils, Heat Exchangers, Saturated Steam Control
Gasket/Plug Material
Viton
Allowable Pressure - Maximum
300 psi
Operating Temperature - Maximum
250 Degrees F
Close-Off Pressure
60 psi
For Media
Water-Glycol Solution to 50%, Steam, Water
Fluid Temperature - Maximum
250 Degrees F
Spring Action
Spring Return
Fluid Temperature - Minimum
32 Degrees F
Port Connection Type
Sweat
Body Pattern
Two-Way

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal On/Off, Actuator Cover Material Not Applicable, Actuator Gears Material Not Applicable, Actuator Housing Material Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, Actuator Voltage Not Applicable, Allowable Pressure - Maximum 300 psi
