Johnson Level & Tool

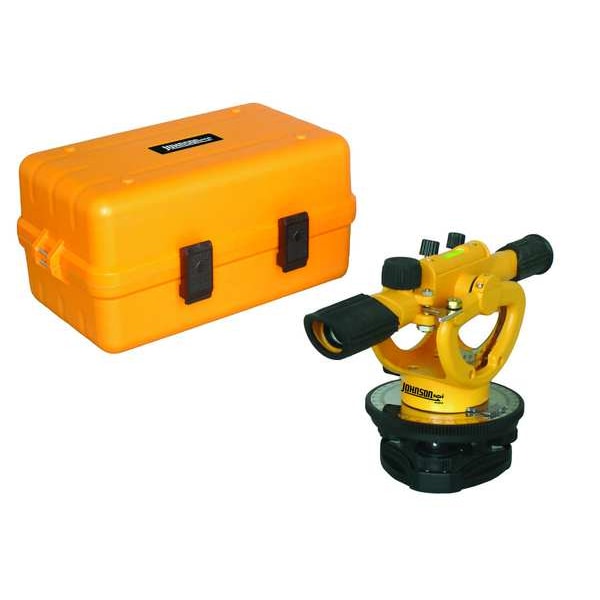

22X Builders Transit Level, Range 200 Ft

product price: $351.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Optical Level Product Grouping Transits
  • Working Range 200 ft
  • Magnification 22X
  • Accuracy +/-3/16 in @ 100 ft
  • Horizontal Range 90 Degrees
See all product information

Product Information

Dimensions

Focus Diameter - Minimum 4 ft
Tripod Thread Size 5/8"-11

Details

Optical Level Product Grouping Transits
Item Builders Transit Level
Working Range 200 ft
Magnification 22X
Accuracy +/-3/16 in @ 100 ft
Horizontal Range 90 Degrees
Vertical Range 45 Degrees
Features Glass Reticle, Reticle Cross Lines
IP Rating Not Rated
Leveling Type Leveling Screws
Aperture 22 mm
Mounting Thread 5/8-11
Includes Case
Number of Lenses 6
Minimum Focus 4 ft
Field of View 1 Degrees 6' (2'/100')
Vertical Graduations 1 Degrees
Characteristics Glass Reticle, Reticle Cross Lines
Horizontal Graduations 1 Degrees
Vernier Reading 15 arc minutes
Stadia Constant 100
Level Orientation Horizontal
Working Range - Maximum 200 ft

Description

Builders Transit Level, Leveling Type Leveling Screws, Magnification 22X, Aperture 22 mm, Working Range - Maximum 200 ft, Field of View 1 Degrees 6' (2'/100'), Horizontal Graduations 1 Degrees , Focus Diameter - Minimum 4 ft, Accuracy +/-3/16 in @ 100 ft, Horizontal Range 90 Degrees , Includes Case, Number of Lenses 6, Features Glass Reticle, Reticle Cross Lines, IP Rating Not Rated, Vernier Reading 15 arc minutes, Vertical Graduations 1 Degrees , Vertical Range 45 Degrees
