Shop JOHNSON LEVEL & TOOL

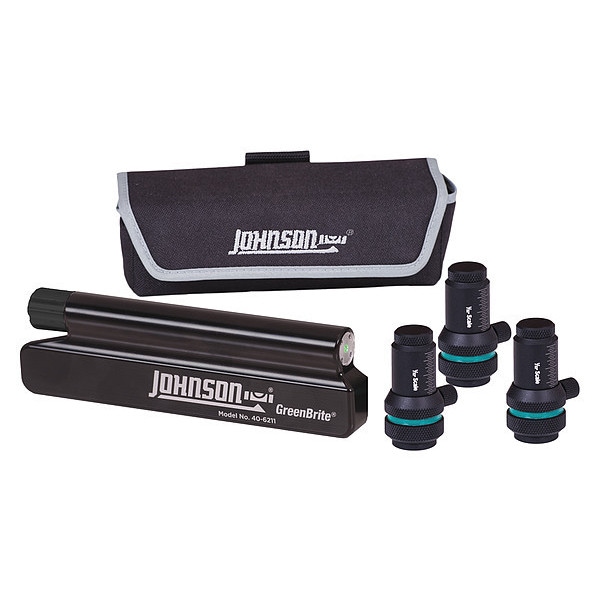

Alignment Laser, Grn, Vertical Projection

  • Mfr # 40-6211

  • Zoro # G6532622

product price:
$
1,289.99
/ea
Free Shipping & Returns

Key Features

Length
1 3/4 in
Accuracy
+/-1/16 in @ 10 ft
Width
6 3/4 in
Features
Accurate Drivetrain Alignment to Reduce Power Losses, Friction, Bearing Wear and Noise, Detects All Methods of Drivetrain Misalignment Including Offset, Angle and Twist, Greenbrite(R) Technology - 400% More Visible than Red Lasers, Includes Pulley Offset Chart to Determine Misalignment Angle
Includes
Case, Target
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40-6211
Zoro #
G6532622
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
1 3/4 in
Width
6 3/4 in
Height
1 3/4 in
Overall Width
11/16 in
Overall Height
1 7/8 in
Overall Depth
6 11/16 in

Details

Accuracy
+/-1/16 in @ 10 ft
Features
Accurate Drivetrain Alignment to Reduce Power Losses, Friction, Bearing Wear and Noise, Detects All Methods of Drivetrain Misalignment Including Offset, Angle and Twist, Greenbrite(R) Technology - 400% More Visible than Red Lasers, Includes Pulley Offset Chart to Determine Misalignment Angle
Includes
Case, Target
Number of 45 Degree Vials
0
Number of Level Vials
0
Number of Plumb Vials
1
Auto Shutoff
No
Number of Lines
0
Number of Dots
0
Power Source
Battery
Plumb Down
No
Visual/Audible Indicators
No
Number of Scanning Modes
0
Laser Class
2
Laser Color
Green
Range w/o Detector
150 ft
Range w/Detector
100 ft
IP Rating
IP54
Item
Sheave Alignment Laser
Laser Projection
Vertical
Total Number of Vials
1
Preset Angle
None
Number of Beams
1
Plumb Up
No
Laser Usage Environment
Interior
Leveling Type
Manual Leveling
Weight
1.2 lb
Material
Plastic
Standards
2001+A11:2004, CFR 21, Parts 1040.10 and 1040.11, EMC Tests EN61000-6-3, EN 60825 & FCC Test Part 15, EN6100-4-2, EN6100-6-1:2011, EN61000-4-3, IEC 285
Bluetooth
Not Bluetooth Compatible
Working Range without Detector - Maximum
150 ft
Indoor Range - Maximum
150 ft
Laser Beam Color
Green
Operating Temperature - Minimum
23 Degrees F
Automatic Shutoff
No
Laser Output
Less Than or Equal To 1 mW
Working Range with Detector - Maximum
100 ft
Number of Planes
0
Includes Batteries
Batteries Included
Number of 45 Vials
0
Operating Temperature - Maximum
104 Degrees F
Battery Type
AA
Outdoor Range - Maximum
150 ft
Use Location
Indoor
Mount Type
Magnetic
Power Source - old
Battery

Description

If you're looking for a way to precisely align your project, the Johnson 40-6211 Sheave Alignment Laser is what you need. It has both manual and automatic levelers, which are easy to use. The laser alignment tool comes with two AAA batteries, so it's ready to go right out of the box. This green laser can be used in vertical or horizontal positions, making it versatile for various applications. With an accuracy of +/-1/16 in at 10 ft., this laser measurer has a length of 1 3/4 in., width of 6 3/4 in., and height of 1 3/4 in.. The straight wireway measures 1 3/4 in. long. When working on precision projects that require accurate measurements, the Johnson 40-6211 Sheave Alignment Laser will help ensure that everything goes smoothly.
