Shop JOHNSON LEVEL & TOOL

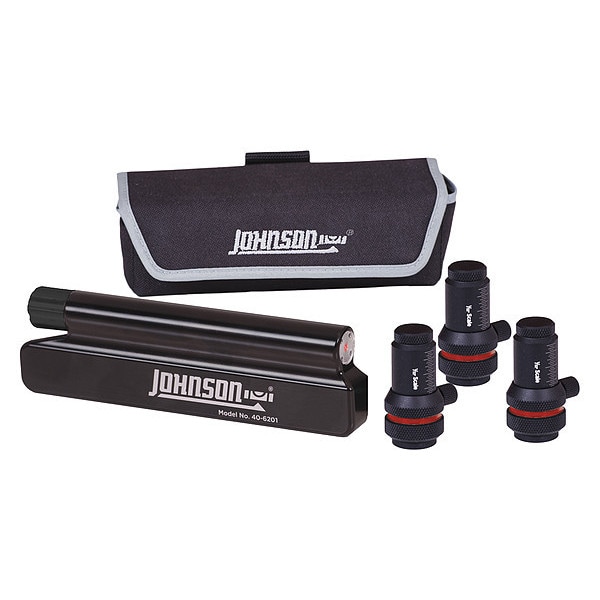

Alignment Laser, Red, Vertical Projection

  • Mfr # 40-6201

  • Zoro # G6564533

product price:
$
859.99
/ea
Free Shipping & Returns

Key Features

Length
1 3/4 in
Accuracy
+/-1/16 in @ 10 ft
Width
6 3/4 in
Features
Accurate Drivetrain Alignment to Reduce Power Losses, Friction, Bearing Wear and Noise, Detects All Methods of Drivetrain Misalignment Including Offset, Angle and Twist, Includes Pulley Offset Chart to Determine Misalignment Angle
Includes
Case, Target
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40-6201
Zoro #
G6564533
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
1 3/4 in
Width
6 3/4 in
Height
1 3/4 in
Overall Width
11/16 in
Overall Height
1 7/8 in
Overall Depth
6 11/16 in

Details

Accuracy
+/-1/16 in @ 10 ft
Features
Accurate Drivetrain Alignment to Reduce Power Losses, Friction, Bearing Wear and Noise, Detects All Methods of Drivetrain Misalignment Including Offset, Angle and Twist, Includes Pulley Offset Chart to Determine Misalignment Angle
Includes
Case, Target
Application
Motor; Gear Box Mounting Plates; Align Pulleys; Sheaves; Sprockets; Gear Trains; Rollers; Platforms; Conveyors
Magnetic/Nonmagnetic
Magnetic
Number of 45 Degree Vials
0
Number of Level Vials
0
Number of Plumb Vials
1
Item
Sheave Alignment Laser
Number of Dots
0
Plumb Down
No
Number of Scanning Modes
0
Number of Beams
1
IP Rating
IP54
Total Number of Vials
1
Laser Color
Red
Power Source
Battery
Preset Angle
None
Plumb Up
No
Visual/Audible Indicators
No
Laser Projection
Vertical
Leveling Type
Manual Leveling
Range w/Detector
100 ft
Auto Shutoff
No
Number of Lines
0
Laser Usage Environment
Interior
Range w/o Detector
100 ft
Laser Class
Class 2
Standards
2001+A11:2004, CFR 21, Parts 1040.10 and 1040.11, EMC Tests EN61000-6-3, EN 60825 & FCC Test Part 15, EN6100-4-2, EN6100-6-1:2011, EN61000-4-3, IEC 285
Weight
1.2 lb
Material
Plastic
Battery Type
AA
Number of 45 Vials
0
Automatic Shutoff
No
Working Range without Detector - Maximum
100 ft
Bluetooth
Not Bluetooth Compatible
Number of Planes
0
Working Range with Detector - Maximum
100 ft
Operating Temperature - Minimum
23 Degrees F
Laser Beam Color
Red
Outdoor Range - Maximum
100 ft
Includes Batteries
Batteries Included
Indoor Range - Maximum
100 ft
Use Location
Indoor
Laser Output
Less Than or Equal To 1 mW
Operating Temperature - Maximum
104 Degrees F
Mount Type
Magnetic
Power Source - old
Battery

Description

Sheave Alignment Laser, Accuracy +/-1/16 in @ 10 ft, Battery Type AA, Bluetooth Not Bluetooth Compatible, Features Accurate Drivetrain Alignment to Reduce Power Losses, Friction, Bearing Wear and Noise, Detects All Methods of Drivetrain Misalignment Including Offset, Angle and Twist, Includes Pulley Offset Chart to Determine Misalignment Angle, Includes Case, Target, Number of Beams 1, Number of Planes 0, Number of Dots 0, Number of Lines 0, Working Range with Detector - Maximum 100 ft

Restrictions

Hazardous material
