This item is Discontinued.

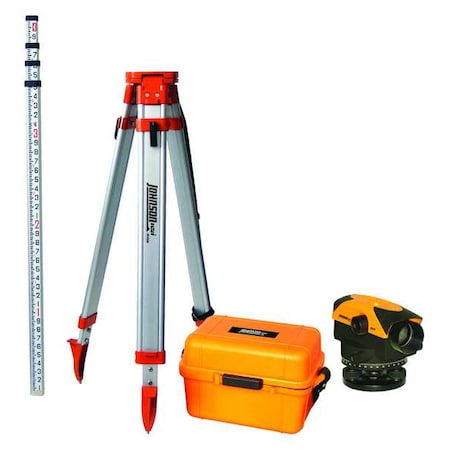

Johnson Level & Tool Automatic Level Kit, 32X, 450 ft 40-6963

Automatic Level Kit, 32X, 450 ft (Discontinued)

  • Mfr # 40-6963
  • Zoro # G4550314
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-6963
Zoro #
G4550314
UPC #
049448069637
Country of Origin
China

Dimensions

Focus Diameter - Minimum
4 ft
Tripod Thread Size
5/8"-11

Details

Optical Level Product Grouping
Optical Levels
Item
Automatic Level Kit
Working Range
450 ft
Magnification
32X
Accuracy
+/-1/16 in @ 200 ft
Horizontal Range
360 Degrees
Horizontal Graduations
1 Degrees
Characteristics
Glass Reticle Has Stadia Lines With 1:100 Ratio, Reticle Cross Lines
Number of Lenses
8
Mounting Thread
5/8-11
Field of View
1 Degrees 30' (2.5'/100')
Leveling Type
Wire-Hung
Minimum Focus
4 ft
Features
Focusing Knob, Focusable Cross-Hairs, Magnetically Dampened Compensator, Prism for Bubble Viewing, Top-Mounted Optical Sight for Quick Reference, Water and Dust Resistant for use in Most Weather Conditions
Includes
Grade Rod, Case, Tripod
Aperture
40 mm
IP Rating
IP54
Vertical Graduations
1 Degrees
Vertical Range
360 Degrees
Level Orientation
Horizontal
Working Range - Maximum
450 ft
Self-Leveling Range
+/-5 Degrees
Stadia Constant
100

Description

Automatic Level Kit, Leveling Type Wire-Hung, Magnification 32X, Aperture 40 mm, Working Range - Maximum 450 ft, Field of View 1 Degrees 30' (2.5'/100'), Horizontal Graduations 1 Degrees , Focus Diameter - Minimum 4 ft, Accuracy +/-1/16 in @ 200 ft, Horizontal Range 360 Degrees , Includes Grade Rod, Case, Tripod, Number of Lenses 8
