  11. Digital Depth Gauge, 3-1/8 in, 80mm

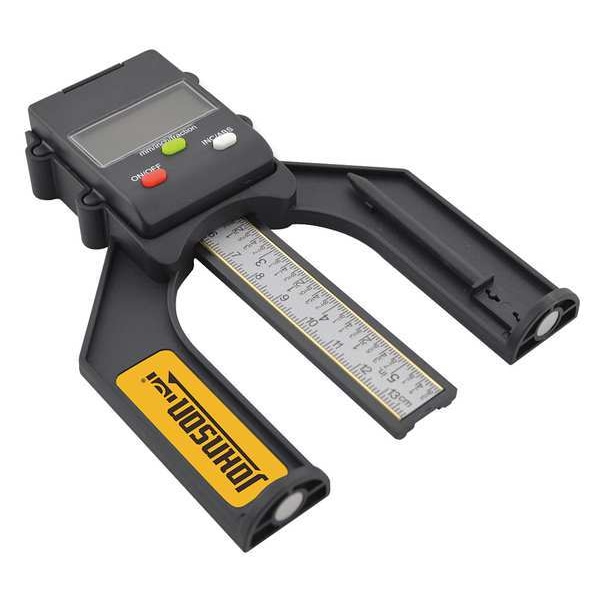

Johnson Level & Tool Digital Depth Gauge, 3-1/8 in, 80mm 1887-0000 - main

Digital Depth Gauge, 3-1/8 in, 80mm

  • Mfr # 1887-0000

  • Zoro # G5314163

product price: $45.29
/ea

Key Features

SPC Output
No
Base Style
Full
Range
0 in to 3 in
Resolution
0.002 in/0.05 mm
Base Length
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1887-0000
Zoro #
G5314163
UPC #
049448870004
Country of Origin
China

Dimensions

Base Length
4 in
Dimension Type
Metric
Depth Gauge Type
Flat Rule
Battery Size
CR2032
Blade Width
4 11/32 in
Rod Diameter
0.75 in x 0.25 in

Details

Item
Blade-Style Digital Depth Gauge
SPC Output
No
Base Style
Full
Range
0 in to 3 in
Resolution
0.002 in/0.05 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
Thimble
Straight
Spindle
Flat
Anvil Material
Hardened Steel
Features
Measures Horizontal and Vertical, Self-Standing
Lock Nut Type
Thumb Screw
Spindle Material
Hardened Steel
Anvil
Flat
Number of Gauges
1
Rotating Spindle (Yes/No)
No
Includes
3V Lithium Battery
Rod Type
Flat Rule
Functions
Measures Horizontal and Vertical, Self-Standing
Display Type
LCD
Actuation Style
Slide
Blade Material
Steel
Data Output Type
Cabled, Wireless
Minimum Measurement - Inch
0 in
Minimum Measurement - mm
0 mm
Maximum Measurement - mm
50 mm
IP Rating
IP54
Thimble Type
Straight
Accuracy
+/-0.004 in
Includes Battery
Yes
Blade Tip Shape
Flat
Operation Type
Digital
Contact Point Shape
Needle
Millimeters Measured - Maximum
50 mm
Millimeters Measured - Minimum
0 mm
Included Certification
Not Included
Inches Measured - Maximum
3 in

Description

This Johnson 1887-0000 Digital Depth Gauge is the perfect tool for all your measuring needs. It has a range of 0 to 3-1/8 in /0 to 80mm and its resolution is 0.002 in/0.05 mm. The blade-style depth gauge measures horizontal and vertical, making it ideal for many different applications. Its self-standing base allows you to read measurements easily without having to hold the gauge in place or rely on another object for support. This digital depth gauge has a 4 in base length and full base style, making it easy to slide under an object when needed. The Johnson 1887 Digital Depth Gauge is the must have tool that will help you get the job done quickly and efficiently.

Restrictions

Hazardous material
