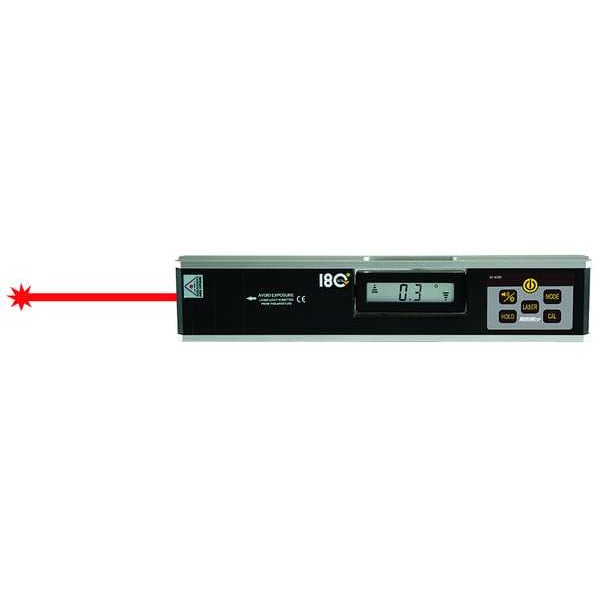

Johnson Level & Tool Digital Level, Laser, Electronic, w/Case 40-6080 - main

Digital Level, Laser, Electronic, w/Case

  • Mfr # 40-6080

  • Zoro # G0660886

product price: $269.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.1 Degrees
Features
5 Construction Languages - Units of Measure (Degrees, Percent, mm/m, in/ft in Decimal, in/ft in Fractional), Audible Indicator at 0 Degrees and 90 Degrees , Automatic Digit Inversion for Overhead Measurements, Backlight, Laser Beam for Transfer of Reference Points, Push Button Calibration, Working Range of Angle Measurement is 0 Degrees to 182.5 Degrees
Includes
Case
Application
Measuring Angles And Pitch
Number of Level Vials
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-6080
Zoro #
G0660886
UPC #
049448060801
Country of Origin
China

Dimensions

Dimensions (In.)
11-1/2 x 2 1/4 x 1 1/4
Length (In.)
12
Overall Width
2 3/8 in
Overall Height
1 1/4 in
Tripod Thread Size
1/4"-20
Overall Depth
12 in

Details

Accuracy
+/-0.1 Degrees
Features
5 Construction Languages - Units of Measure (Degrees, Percent, mm/m, in/ft in Decimal, in/ft in Fractional), Audible Indicator at 0 Degrees and 90 Degrees , Automatic Digit Inversion for Overhead Measurements, Backlight, Laser Beam for Transfer of Reference Points, Push Button Calibration, Working Range of Angle Measurement is 0 Degrees to 182.5 Degrees
Includes
Case
Application
Measuring Angles And Pitch
Number of Level Vials
1
Number of Plumb Vials
0
Power Source
(3) AAA Batteries
Item
Electronic Laser Level
Visual/Audible Indicators
Yes
Characteristics
Digital Display/Audible Tones For Plumb and Level, Switchable Between Angle And Grade, LCD Can Rotate Up To 180 Degrees , Inclination In Degrees Or Percent, Self-Calibrated At 0 And 90 Degrees Which Are Confirmed By a Signal Tone, Visible Class II Laser Beam, Magnetic Base, 1/4-20 Thread For Use With Tripod
Operating Temp. (F)
15 Degrees to 115 Degrees
Range (Ft.)
0 to 90
Total Number of Vials
0
Standards
CFR 21, Parts 1040.10 and 1040.11, IEC 285
Weight
1.48 lb
Material
Aluminum
Number of Dots
1
Number of Beams
1
Number of Scanning Modes
0
Laser Projection
Horizontal
IP Rating
IP54
Number of Lines
0
Leveling Type
Manual Leveling
Laser Class
Class 3A
Outdoor Range - Maximum
100 ft
Level Indicators
Audible
Operating Temperature - Maximum
113 Degrees F
Number of 45 Vials
0
Working Range without Detector - Maximum
100 ft
Laser Beam Color
Red
Use Location
Indoor, Outdoor
Includes Batteries
Batteries Included
Preset Angles
0 Degrees , 90 Degrees
Mount Type
Magnetic
Bluetooth
Not Bluetooth Compatible
Battery Type
AAA
Operating Temperature - Minimum
14 Degrees F
Laser Output
Less Than or Equal To 5 mW
Indoor Range - Maximum
100 ft
Number of Planes
0
Working Range with Detector - Maximum
182 ft

Description

Electronic Laser Level, Accuracy +/-0.1 Degrees , Battery Type AAA, Bluetooth Not Bluetooth Compatible, Features 5 Construction Languages - Units of Measure (Degrees, Percent, mm/m, in/ft in Decimal, in/ft in Fractional), Audible Indicator at 0 Degrees and 90 Degrees , Automatic Digit Inversion for Overhead Measurements, Backlight, Laser Beam for Transfer of Reference Points, Push Button Calibration, Working Range of Angle Measurement is 0 Degrees to 182.5 Degrees , Includes Case
